LED-4013

Be the first to review this product

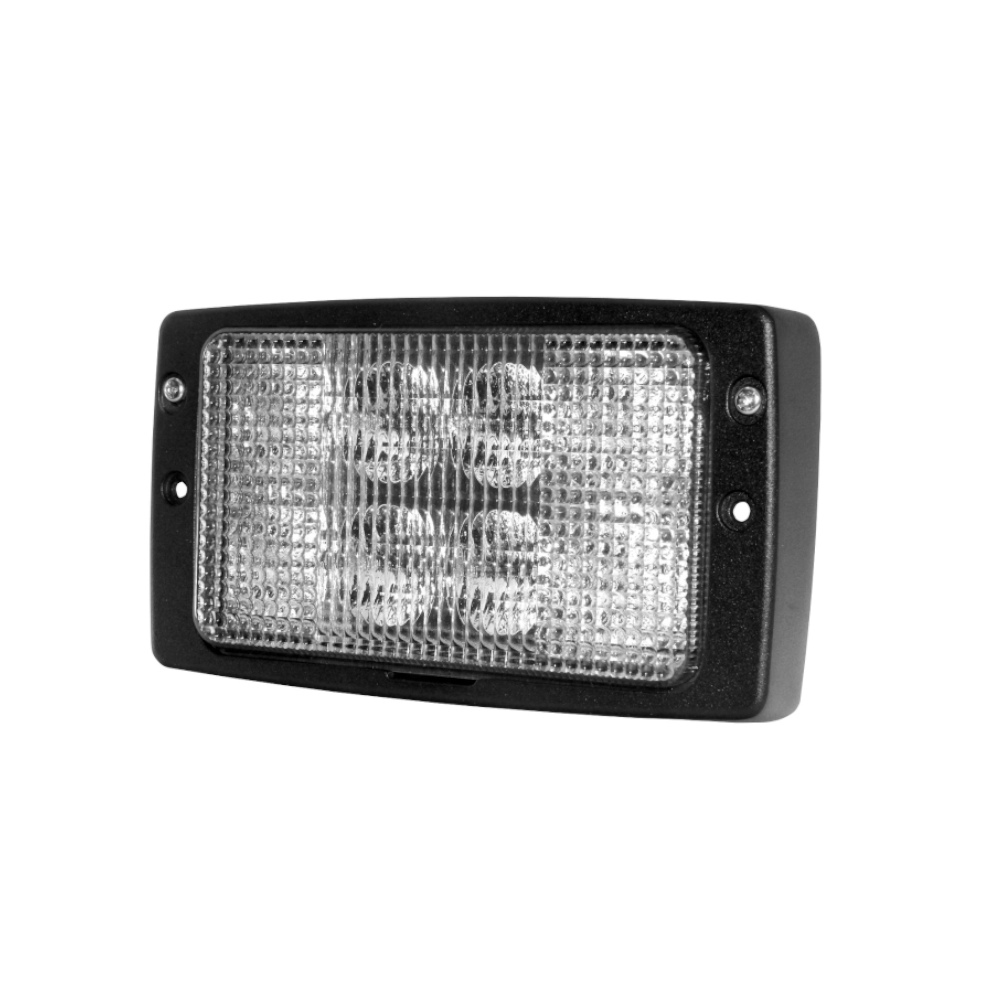

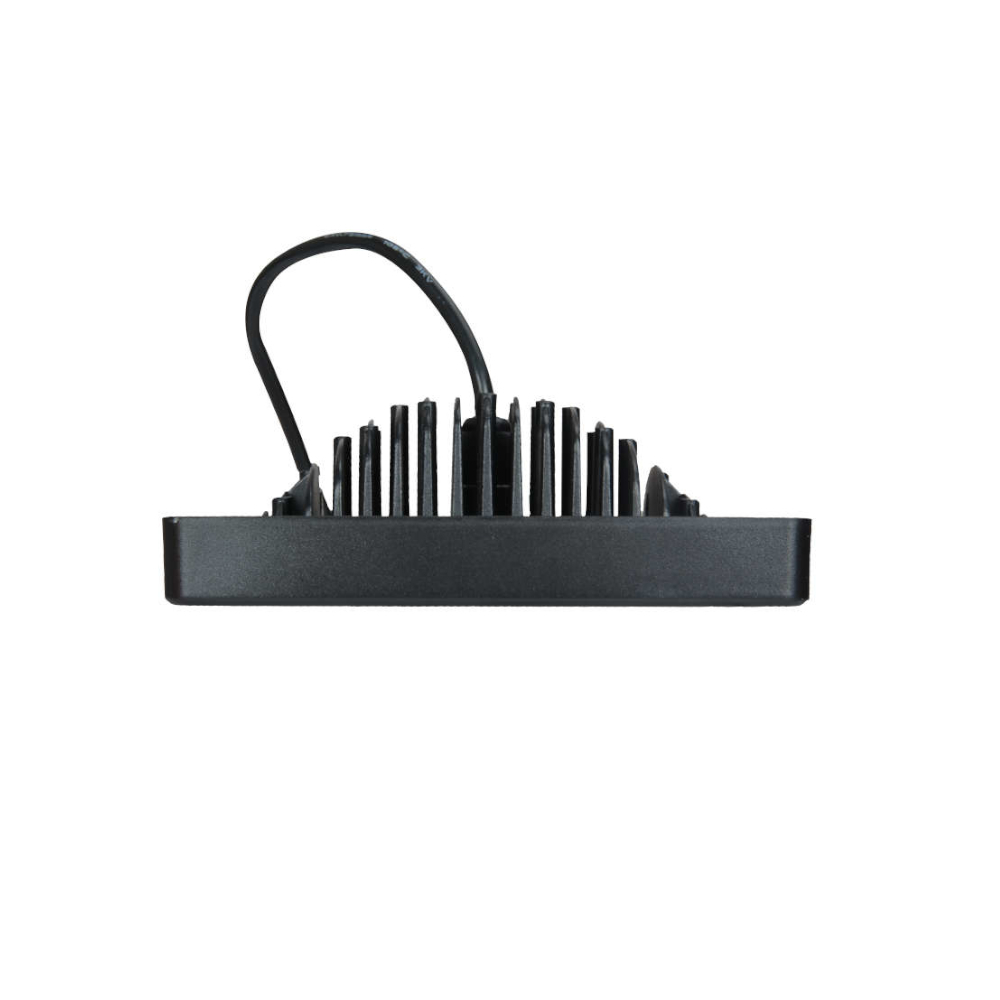

LED-4013 Hi-Lo or as flood using the included adapter wire. Claas Combine Light. Will also fit some Massey Ferguson tractors with high visibility cabs and John Deere Forage Harvesters. Replaces OEM Part Numbers: AZ41570, 3713134M91

SKU: LL0329

Availability:

57 in stock

$50.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-4013

Also see LED-4012 flood here

CREE LED 5 watt x 8 = 40 watt

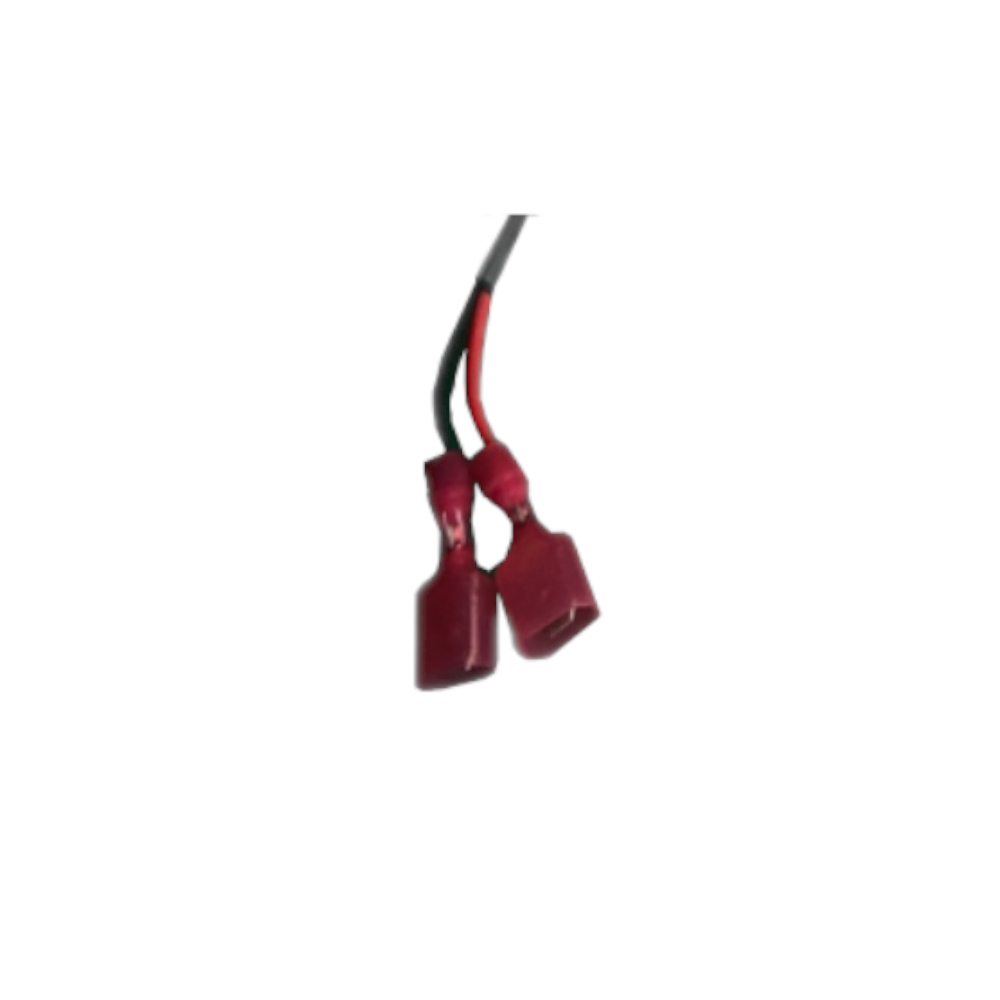

Light Pattern: Hi-Lo or use adapter cable for flood light
Amps used: 2.8. Watt used 34
Dimensions: 7.25" x 3.25" x 3.25"
Bolt hole spacing center to center: 6.25"
Voltage: 9 to 32
Lumen Rating: 3000

Replace: BOMAG 38051554, CLAAS 00123610, DEUTZ-FAHR 04434892,
DEUTZ-FAHR 16037015, FENDT 3713137M1, HELLA 006213001, HELLA
1AB006213007, HELLA 1AB006213008, HELLA 1AB006213018, HELLA
1AB006213037, HERTH+BUSS ELPARTS 81658028, supporto 128289 ,
KESSBOHRER 75120300, KESSBOHRER 75120300000, KOGEL 316573,
KOGEL 323759, KRAMER 0000800768, KRONE 09246370, KRONE
09246371, MASSEY Ferguson 3713137M1, MERCEDES 0015444601,
MERCEDES A0015444601, ULO 6762251

TL9090, LED4013

LED-4013

Also see LED-4012 flood here

CREE LED 5 watt x 8 = 40 watt
Light Pattern: Hi-Lo or use adapter cable for flood light
Amps used: 2.8. Watt used 34
Dimensions: 7.25" x 3.25" x 3.25"
Bolt hole spacing center to center: 6.25"
Voltage: 9 to 32
Lumen Rating: 3000

TL9090, LED4013

Use On Below Models (Click to expand)

AGCO

Tractor: DT160 Prior to S/N M126039 DT180 Prior to S/N M126039 DT200 Prior to S/N M126039 DT225 Prior to S/N M126039 RT115 Prior to S/N M126039 RT130 Prior to S/N M126039 RT145 Prior to S/N M126039 RT95 Prior to S/N M126039

Allis Chalmers

Tractor: 8775 8785 9735 9745 9755 9765 9775 9785

Challenger

Tractor: MT535 Prior to S/N M126039 MT545 Prior to S/N M126039 MT565 Prior to S/N M126039 MT635 Prior to S/N M126039 MT645 Prior to S/N M126039 MT655 Prior to S/N M126039 MT665 Prior to S/N M126039

Claas

Chopper: 820 830 840 850 860 870 880 890 900

Combine: 450 Lexion 460 Lexion 460R Lexion 470 Lexion 470R Lexion 475 Lexion 475R Lexion 480 Lexion 480R Lexion 485 Lexion 485R Lexion 560 Lexion 560R Lexion 570 Lexion 570R Lexion 575R Lexion 580R Lexion 585R Lexion 590R Lexion 595R Lexion

John Deere

Harvester: 6650 6750 6850 6950 7180 7200 7250 7280 7300 7350 7380 7400 7450 7480 7500 7550 7580 7700 7750 7780 7800 7850 7950 7980

Massey Ferguson

Tractor: 4225 w/High Visibility Roof 4235 w/High Visibility Roof 4240 w/High Visibility Roof 4245 w/High Visibility Roof 4255 w/High Visibility Roof 4260 w/High Visibility Roof 4265 w/High Visibility Roof 4270 w/High Visibility Roof 4325 w/High Visibility Roof 4335 w/High Visibility Roof 4345 w/High Visibility Roof 4355 w/High Visibility Roof 4360 w/High Visibility Roof 4365 w/High Visibility Roof 4370 w/High Visibility Roof 6140 6150 6170 6180 6190 6235 Prior to S/N M126039 6245 Prior to S/N M126039 6255 Prior to S/N M126039 6265 Prior to S/N M126039 6270 Prior to S/N M126039 6280 Prior to S/N M126039 6290 Prior to S/N M126039 8120 8140 8150 8160 8210 Prior to S/N M126039 8220 Prior to S/N M126039 8240 Prior to S/N M126039 8245 Prior to S/N M126039 8250 Prior to S/N M126039 8260 Eff. S/N CG198001-CH271003 8270 Prior to S/N M126039 8280 Prior to S/N M126039

White

Tractor: 6710 Eff. S/N J117019 6810 Eff. S/N J117019 8310 Prior to 2001 8410 Prior to 2001 8510 8610 8710 8810
