LED-760 is a 4x6 style LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5200-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-660.
LED-765 is a 4x6 style Oval LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5000-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-665.
LED-6075 Oval LED Light . This is a light similar to the Thomas HP-5 light, but 1000 lumens brighter at 6000 effective lm. Includes a pigtail wire for power. Select from 20° / 40° / 60° / 80° beam types. Please add adapter wires as needed.
High Power LED 2 x 5 LED light for the top front cab on the 6000-7000-8000 series tractor. 30° or 60° beam. Can also be used in the nosecone on the 55 and 60 series tractors. Lumen: 3000 Raw, 2400 Effective.
PAR-36 size replacement LED light for the old style sealed beam halogen light. 5-watt CREE LED chips. Actual power use is around 18 watts, effective lumen around 1400, raw lumen around 2200.
High power 40 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 4 x 10 watt LED chips. This light will only fit in normal full size housings with rubber grommets due to large cooling fins. Also it will NOT fit in the new plastic housings used on some later model JD's. This light has a temperature sensor that will limit the power of the light if the temperature gets too high. Max effective lumen 2800 - minimum effective lumen 2200.
30 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. Available beam types are 60° flood, 40° beam, Hi-Lo beam, and Spot beam. This light has a chrome background, the picture does not show it well.
The LED-408U is a complete LED light that can replace OEM PAR-36 style lights. It includes hardware for all 3 locations on a JD SG cab, in front fenders, top of rear fender, and top rear cab. 3200 lumen vs. the OEM lights at 600 lumens. This light uses 3D reflector cups for the best light output.

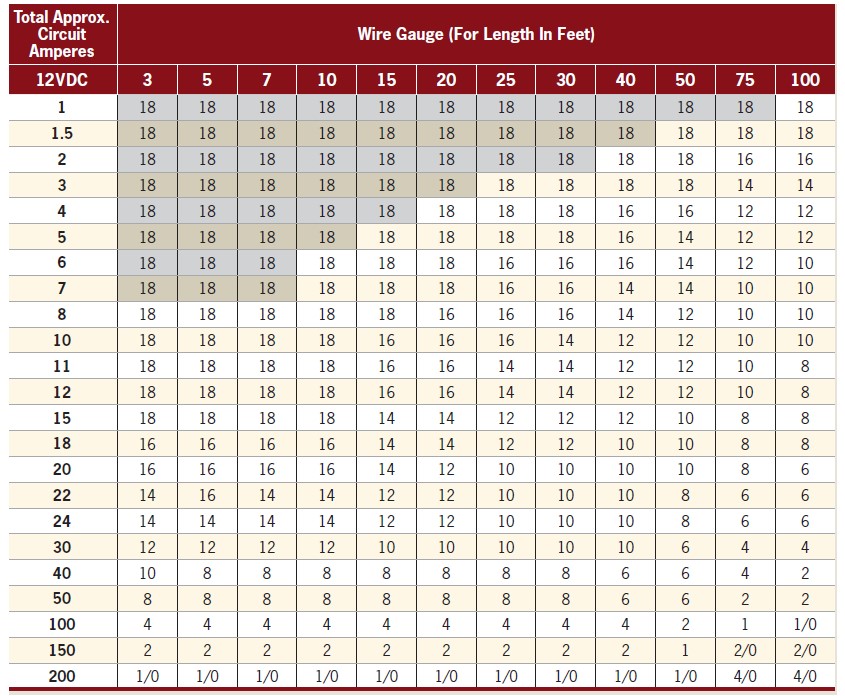

Here is a good chart to use for selecting the right wire size (AWG). For the area in gray, (18 AWG) they recommend using a size larger for more tensile strength.
Light Kits - ordering a kit makes it easy to get what you need for your tractor, and know that it will fit. Most of our many kits have options to add extra lights as needed....
