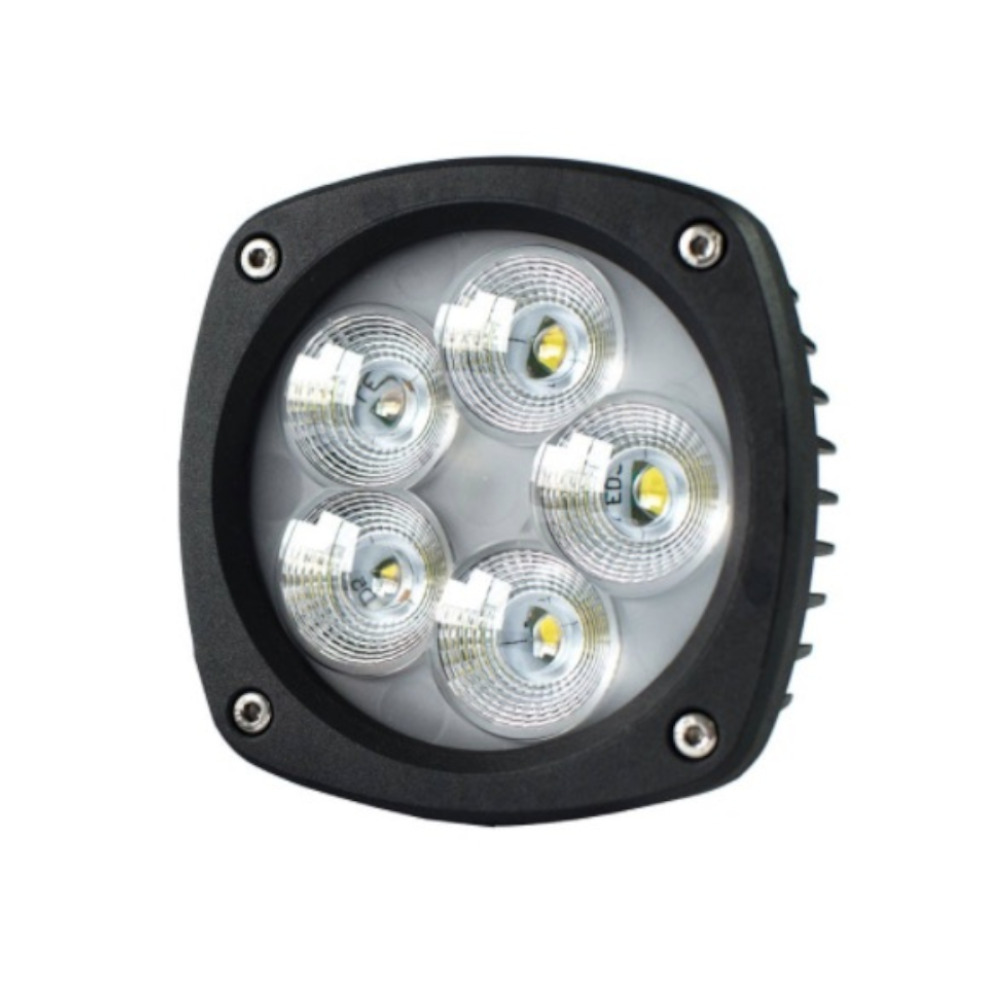

LED-504 Spot
Includes DT male and female connector.
Power: 50W
10W*5 USA CREE LEDs
Operating Voltage: 10-30V DC
Lumens: 4500lm
Beam pattern: Spot beam
Waterproof rate: IP68
Color temperature: 6000K
Material:Die casting aluminum housing
Lens material: Scratch-resistant PC
Mounting Bracket: stainless steel
Size: 4.25" square, 3" deep, bracket adds 0.5" the height.
Replaces Case® Part Numbers: 87555142, 84236850, 87584890, 47682620, 47682629
Replaces Caterpillar® Part Numbers: 383-8634, 386-1717, 386-1718, 214-2968, 290-5749, 254-8155, 346-9593, 388-6274, 234-4323, 388-6294, 388-6291, 388-6292, 388-6293, 386-1722, 386-1723, 234-4329, 319-7381, 319-7382, 319-7377, 319-7378, 319-7380, 201-1422, 201-1423, 424-5603, 234-4324, 234-4325, 234-4326, 234-4327, 234-4328, 212-9347, 214-2696, 384-9610, 219-6482, 219-6486, 272-6641, 417-0977, 319-7379, 219-6485, 359-3429, 359-3427, 359-3430, 332-9402, 347-9427, 359-3446, 168-1960, 171-2065, 171-2066, 180-1300, 227-5978, 227-5979, 257-3168, 257-3171, 359-3426, 359-3445, 147-0319, 153-2073, 161-3509, 164-7600, 168-1953, 353-9420, 366-7803, 381-8979, 157-0305, 161-0908, 162-3294
Replaces Gehl® Part Number: 241117
Replaces John Deere® Part Numbers: AT305931, AT443224, AT443223, AT135486, AT135485
Replaces Komatsu® Part Numbers: 37A-06-12430, 423-06-33130
TL500, LED504
