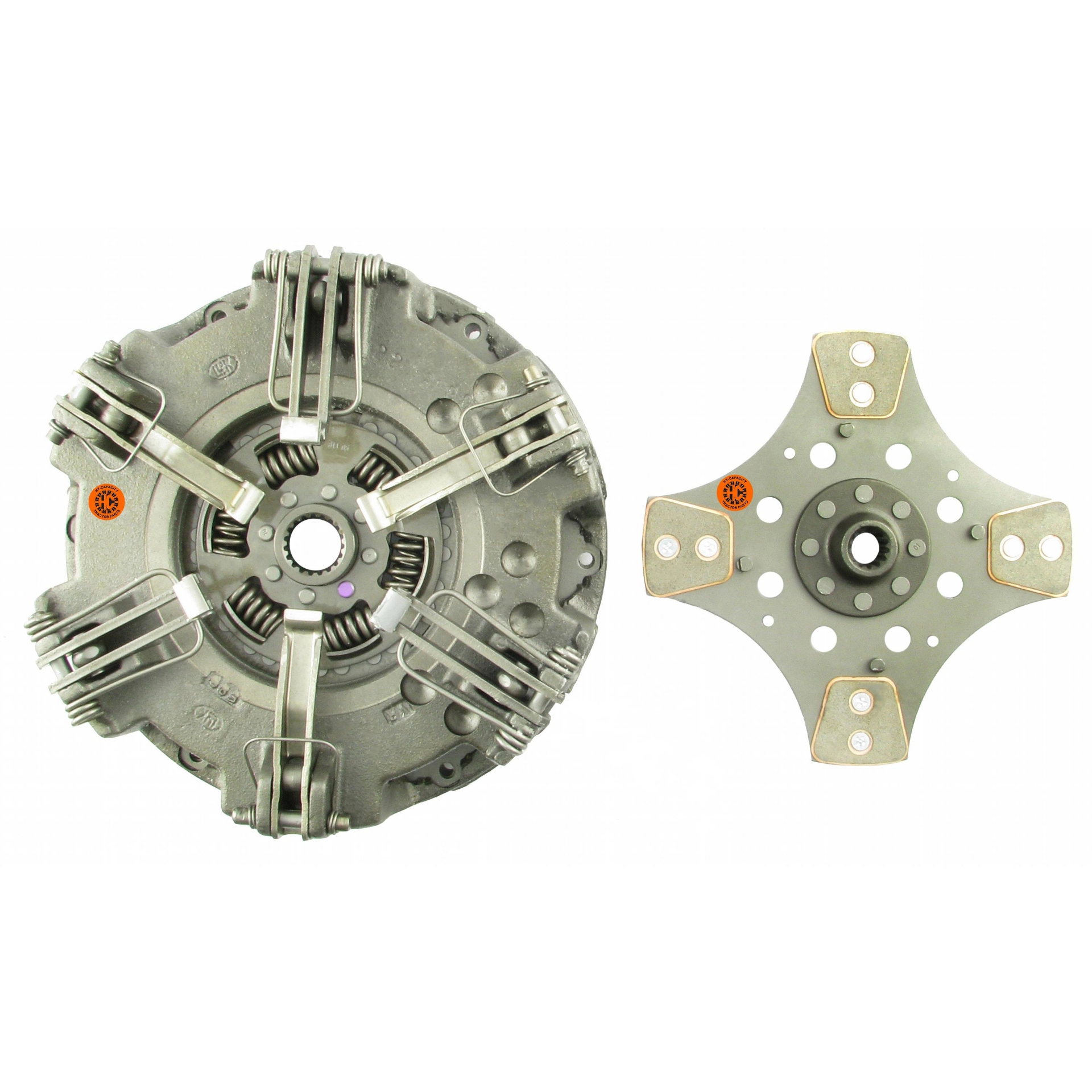

11" Dual Stage Clutch Unit, w/ 4 Pad Disc - Reman

This is a Safety PTO Clutch, check that the flywheel disc is free after installation. Learn more, Safety PTO Clutch Service Guide. Includes: PPA, Captive Transmission Disc, ##R72536## (Flywheel Side PTO Disc)

Manufacturer: Hy-Capacity

SKU: R72534U2

Availability:

In stock

$689.92

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.787"
PPA Levers	6
Captive Disc Spec	6 Pad; 1-3/8" 19 Spline Hub; Spring Center
Flywheel Disc Spec	4 Pad; 1" 13 Spline Hub; Solid Center
New/Reman	Reman
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.787"
PPA Levers	6
Captive Disc Spec	6 Pad; 1-3/8" 19 Spline Hub; Spring Center
Flywheel Disc Spec	4 Pad; 1" 13 Spline Hub; Solid Center
New/Reman	Reman
Sold As	Each
Warranty	1 Year

Product tags

RE211277 (5)
,
RE72534 (5)

Use On Below Models (Click to expand)

John Deere

Tractor: 5045E w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5050E w/ Collarshift or Synchshuttle Transmission 5055E w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5060E w/ Collarshift or Synchshuttle Transmission 5065E w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5075E w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5103 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5203 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5210 Eff. S/N 321726, w/ Collarshift or Synchshuttle Transmission 5220 w/ Collarshift or Synchshuttle Transmission 5303 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5310 Eff. S/N 332930, w/ Collarshift or Synchshuttle Transmission 5310N Eff. S/N 337355, w/ Syncreverser Transmission 5320 w/ Collarshift or Synchshuttle Transmission 5320N w/ Syncreverser Transmission 5403 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5410 Eff. S/N 342473, w/ Collarshift or Synchshuttle Transmission 5415 S/N 002288-> w/ Collarshift or Synchshuttle Transmission, w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401, Tractor must be split in order to identify specifications to prevent ordering errors 5420 w/ Syncshuttle & Collarshift Transmission 5420N w/ Syncreverser Transmission 5425N w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401 5503 w/ Collarshift or Synchshuttle Transmission. If your Machine has a Shift Collar I.D. of 2.677", also order 8302285 Transmission Release Bearing 5510 Eff. S/N 351742, w/ Collarshift or Synchshuttle Transmission 5510N Eff. S/N 357403, w/ Syncreverser Transmission 5520 w/ Syncshuttle & Collarshift Transmission 5520N w/ Syncreverser Transmission 5525 w/ Collarshift Transmission 5600 Positively Identify Clutch Before Ordering 5603 w/ Collarshift or Synchshuttle Transmission 5605 w/ Collarshift & TSS Tranmission 5615 S/N 002319-> w/ Collarshift or Synchshuttle Transmission, w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401, Tractor must be split in order to identify specifications to prevent ordering errors 5700 Positively Identify Clutch before ordering 5705 w/ Collarshift & TSS Tranmission 5715 S/N 003601-> w/ Collarshift or Synchshuttle Transmission, w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401, Tractor must be split in order to identify specifications to prevent ordering errors 5725 w/ Collarshift Transmission 5725N w/ Cast Plate Thickness 1.420" & Cast Plate # 220230401

TRACTOR: 5425 w/ 0.787" Step Flywheel & Collarshift Transmission 5625 w/ 0.787" Step Flywheel & Collarshift Transmission
