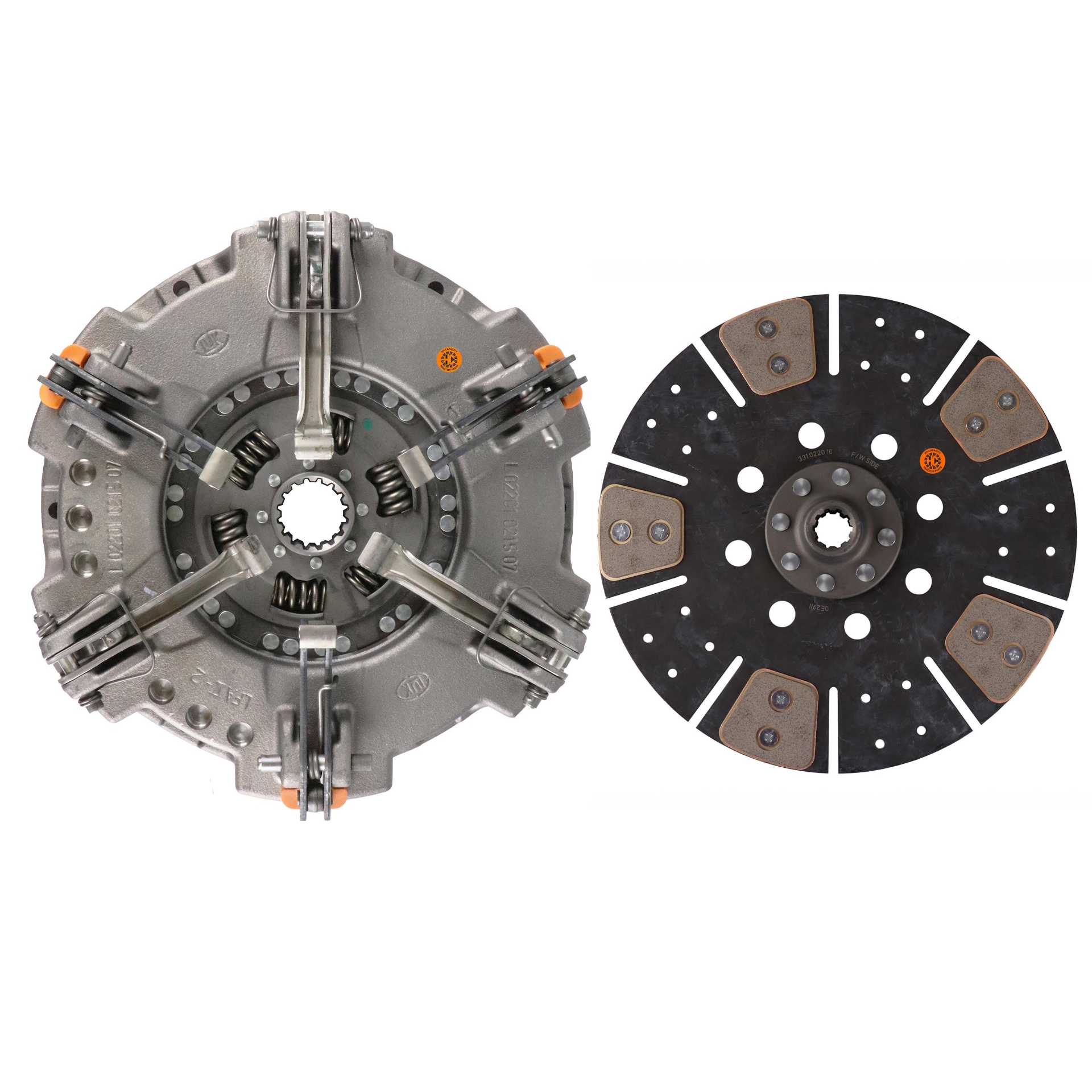

12-1/4" Dual Stage Heavy Duty LuK Clutch Unit - New

Includes: LuK Style PPA, Captive Transmission Disc, 5 Pad Flywheel Side PTO Disc. Heavy Duty Replacement option for F5092803NU Valeo Style Clutch

SKU: F5092803LKNU

$1,198.64

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Captive Disc Spec	6 Pad; 1-3/4" 16 Spline Hub; Spring Center
Flywheel Disc Spec	5 Pad; 1" 10 Spline Hub; Solid Center
Flywheel Step	0.018"
New/Reman	New
PPA Levers	6
Size	12-1/4"
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Captive Disc Spec	6 Pad; 1-3/4" 16 Spline Hub; Spring Center
Flywheel Disc Spec	5 Pad; 1" 10 Spline Hub; Solid Center
Flywheel Step	0.018"
New/Reman	New
PPA Levers	6
Size	12-1/4"
Sold As	Each
Warranty	1 Year

Product tags

5092803R (3)
,
5092802 (3)
,
5092803 (3)
,
47618909 (3)
,
84177332 (2)
,
47618909R (3)
,
F5092803RU (3)
,
F5189825 (2)

Use On Below Models (Click to expand)

Case IH

Tractor: 90 Farmall Luk Style w/ 6 evenly spaced levers. Heavy Duty Replacement option for F5092803NU Valeo style clutch 95 Farmall Luk Style w/ 6 evenly spaced levers. Heavy Duty Replacement option for F5092803NU Valeo style clutch JX95 Luk Style w/ 6 evenly spaced levers. Heavy Duty Replacement option for F5092803NU Valeo style clutch

New Holland

Tractor: TD5050 Luk Style w/ 6 evenly spaced levers. Heavy Duty Replacement option for F5092803NU Valeo style clutch TD95D Luk Style w/ 6 evenly spaced levers. Heavy Duty Replacement option for F5092803NU Valeo style clutch
