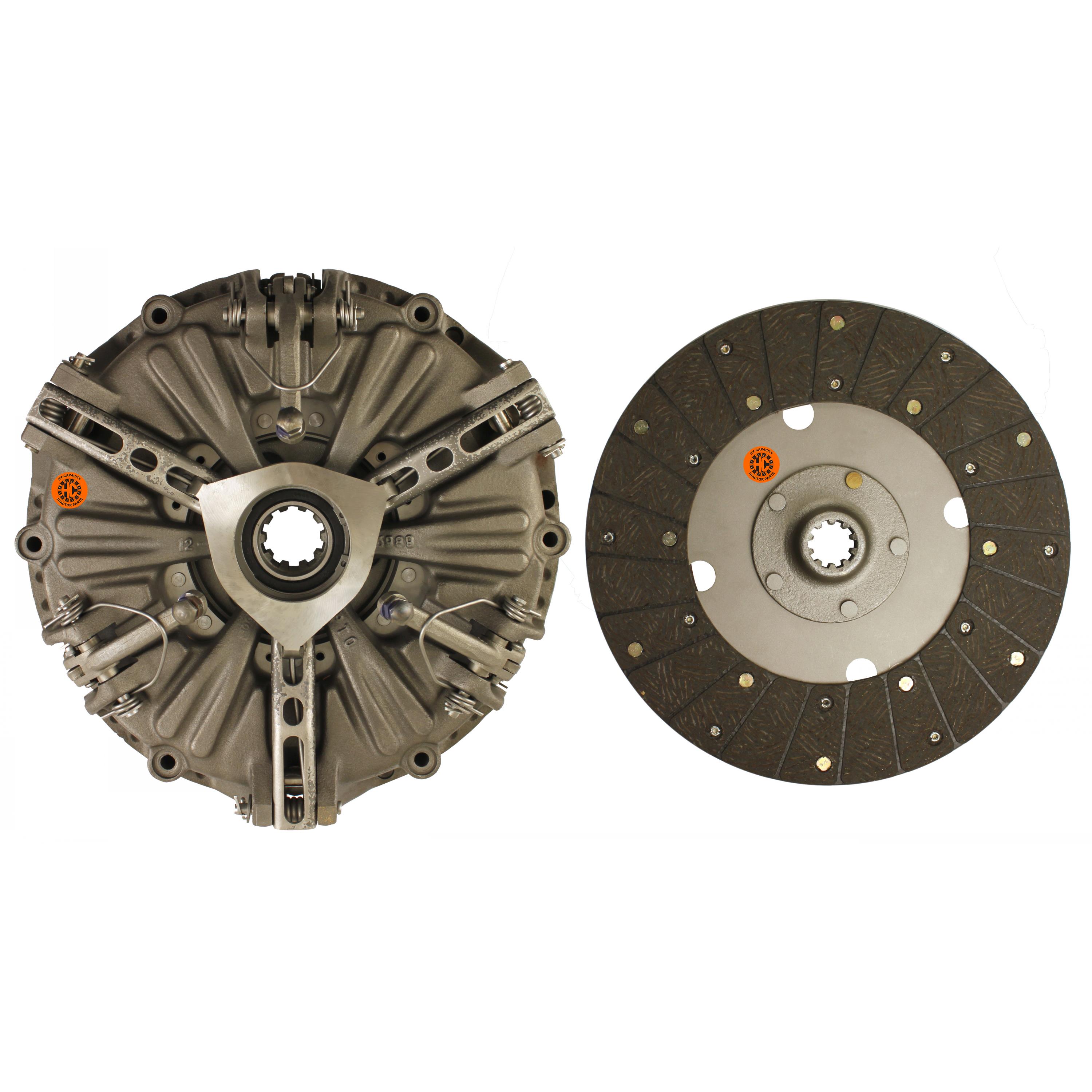

12" Dual Stage Clutch Unit - Reman

This core is extremely rare and your core is required to fulfill this order. Contact us for instructions on sending your core in for Rebuild & Return. Includes: PPA, ##AK956052 HD6## (Captive Transmission Disc) & ##AK947089R## (Flywheel Side PTO Disc)

Manufacturer: Hy-Capacity

SKU: AK954992RU

Vendor: Granit

Availability:

Out of stock

$778.04

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	12"
Flywheel Step	0.010"
PPA Levers	6
PPA Springs	12 Coil Springs
Captive Disc Spec	6 Pad; 1-3/4" 10 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1-1/8" 10 Spline Hub; Solid Center
New/Reman	Reman
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	12"
Flywheel Step	0.010"
PPA Levers	6
PPA Springs	12 Coil Springs
Captive Disc Spec	6 Pad; 1-3/4" 10 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1-1/8" 10 Spline Hub; Solid Center
New/Reman	Reman
Sold As	Each
Warranty	1 Year

Product tags

1539023C1 (2)
,
K954992 (1)
,
K202291 (2)
,
A-1539023C1 (2)
,
A-K954992 (1)
,
AK954992R (1)

Use On Below Models (Click to expand)

David Brown

Tractor: 1190 1194 1210 2WD Eff. S/N 11154231, 4WD 1210G 1210Q 1210SK 1212G 1212Q 1212SK 1294 1394 1410 1410Q 1410SK 1412 1412G 1412Q 1412SK 1490 2WD, MFD, PS 1494 2WD, MFD, PS

Leyland

Tractor: 2100 285 4100 485 502 602 702 704 802 804 904
