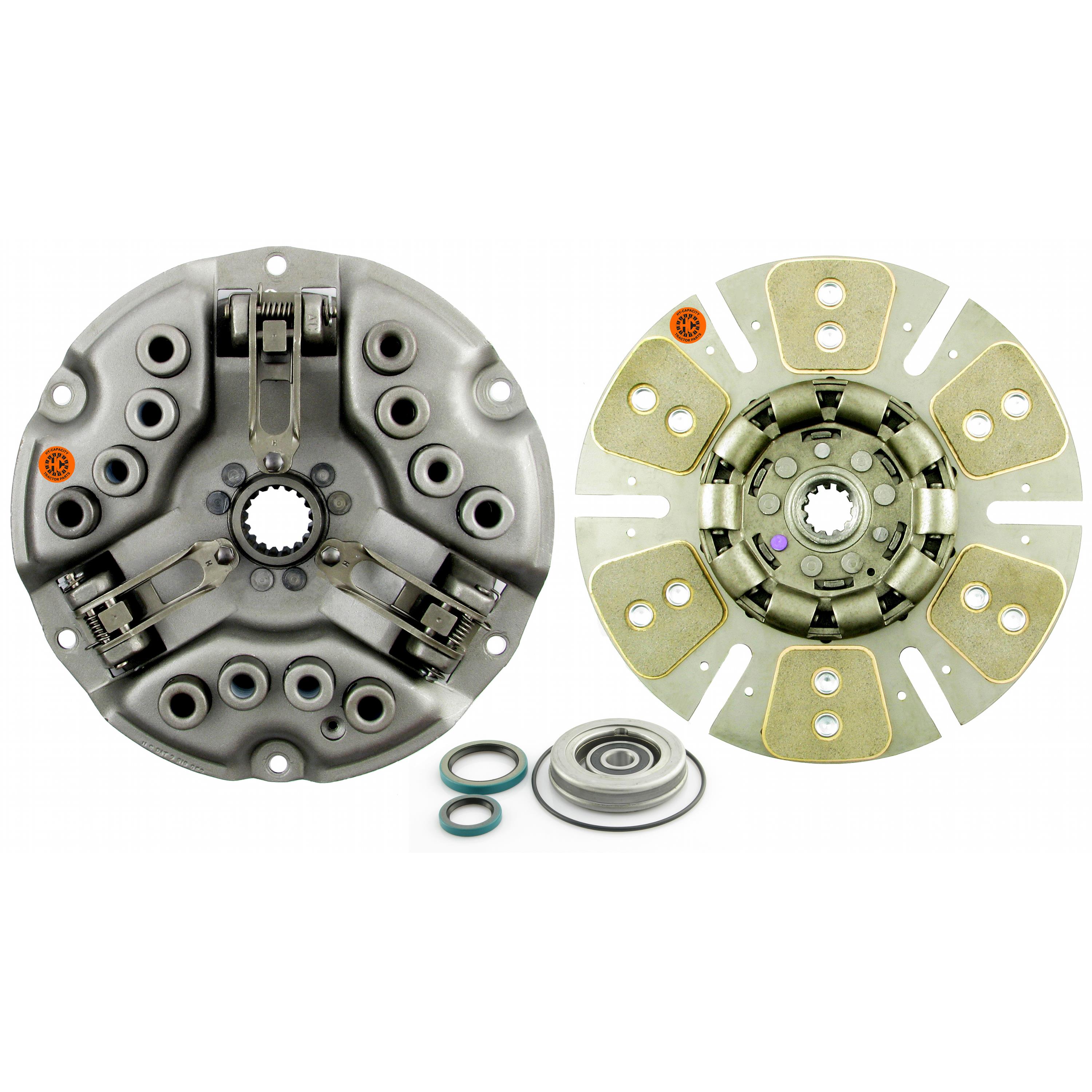

12" Single Stage Clutch Kit, w/ Bearings & Seals - Reman

Heavy duty. Hydraulic assist recommended.Includes: 104496 (New PPA), 384395 HD6 (Disc), Release Bearing, 836304 (Pilot Bearing), 535208 (Inner IPTO Seal), 535209 (Outer IPTO Seal) & 22414 (IPTO Bearing Cage O-Ring)The 104496 KIT 12" Single Stage Clutch Kit, w/ Bearings & Seals - Reman fits equipment brands such as: International

Manufacturer: Hy-Capacity

SKU: 104496 KIT

$407.60

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	12"
Flywheel Step	1.406"
Hub Size	1-3/4"
Spline Count	17
PPA Levers	3
PPA Springs	12 Coil Springs
Flywheel Disc Spec	6 Pad; 1-3/16" 11 Spline Hub; Spring Center
New/Reman	Reman
Sold As	Each

Products specifications

Attribute name	Attribute value
Size	12"
Flywheel Step	1.406"
Hub Size	1-3/4"
Spline Count	17
PPA Levers	3
PPA Springs	12 Coil Springs
Flywheel Disc Spec	6 Pad; 1-3/16" 11 Spline Hub; Spring Center
New/Reman	Reman
Sold As	Each

Product tags

104496C1 (1)
,
104496C2 (1)
,
84354928 (1)
,
104496C2R (1)

Use On Below Models (Click to expand)

International

Tractor: 3688 986 Converting to a 14" Clutch is an option for this machine by using the following part numbers: HH672215 Flywheel & 120181 Kit Clutch Kit. If your tractor has Hydraulic Assist it is recommend to use part number 67597 Kit for the clutch.
