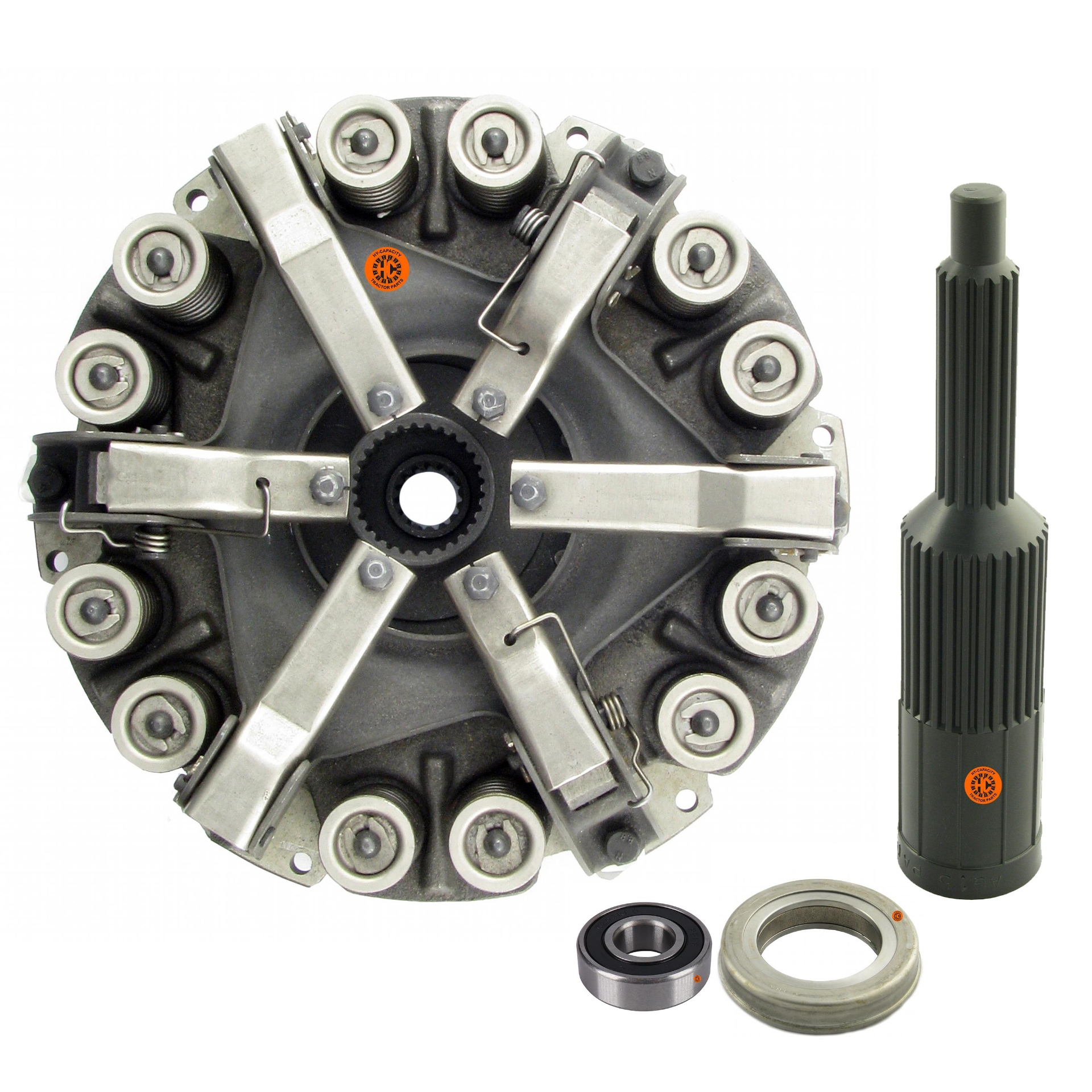

9" Dual Stage Clutch Kit, w/ Bearings - New

The clutch alignment tool is for installation purposes & is not returnable.

Includes: ##F4702DS New## (PPA), ##832505## (Release Bearing), ##836203## (Pilot Bearing) & ##8301154## (Clutch Alignment Tool)

Manufacturer: Hy-Capacity

SKU: F4702DSN KIT

Vendor: Granit

Availability:

In stock

$479.66

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	9"
Flywheel Step	Flat
PPA Levers	6
Captive Disc Spec	Woven; 1-7/8" 29 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1" 15 Spline Hub; Spring Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	9"
Flywheel Step	Flat
PPA Levers	6
Captive Disc Spec	Woven; 1-7/8" 29 Spline Hub; Solid Center
Flywheel Disc Spec	Woven; 1" 15 Spline Hub; Spring Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

957E7502B (2)
,
311435 (2)
,
957E7502B (2)
,
4702DSNKIT (1)
,
1112-6066 (2)
,
A-311435 (2)
,
S.19509 (2)

Use On Below Models (Click to expand)

Ford

Tractor: 2000 Yr. 55/64 2030 Yr. 55/64 4000 Yr. 55/64 600 Yr. 55/64 601 Yr. 55/64 611 Yr. 55/64 620 Yr. 55/64 621 Yr. 55/64 630 Yr. 55/64 631 Yr. 55/64 640 Yr. 55/64 641 Yr. 55/64 650 Yr. 55/64 651 Yr. 55/64 660 Yr. 55/64 661 Yr. 55/64 671 Yr. 55/64 681 Yr. 55/64 700 Yr. 55/64 701 Yr. 55/64 740 Yr. 55/64 741 Yr. 55/64 771 Yr. 55/64 800 Yr. 55/64 801 Yr. 55/64 811 Yr. 55/64 820 Yr. 55/64 821 Yr. 55/64 841 Yr. 55/64 850 Yr. 55/64 851 Yr. 55/64 860 Yr. 55/64 861 Yr. 55/64 871 Yr. 55/64 881 Yr. 55/64 900 Yr. 55/64 901 Yr. 55/64 941 Yr. 55/64 950 Yr. 55/64 951 Yr. 55/64 960 Yr. 55/64 961 Yr. 55/64 971 Yr. 55/64 981 Yr. 55/64 Dexta Yr. 55/64 Jubilee Super Dexta Yr. 55/64
