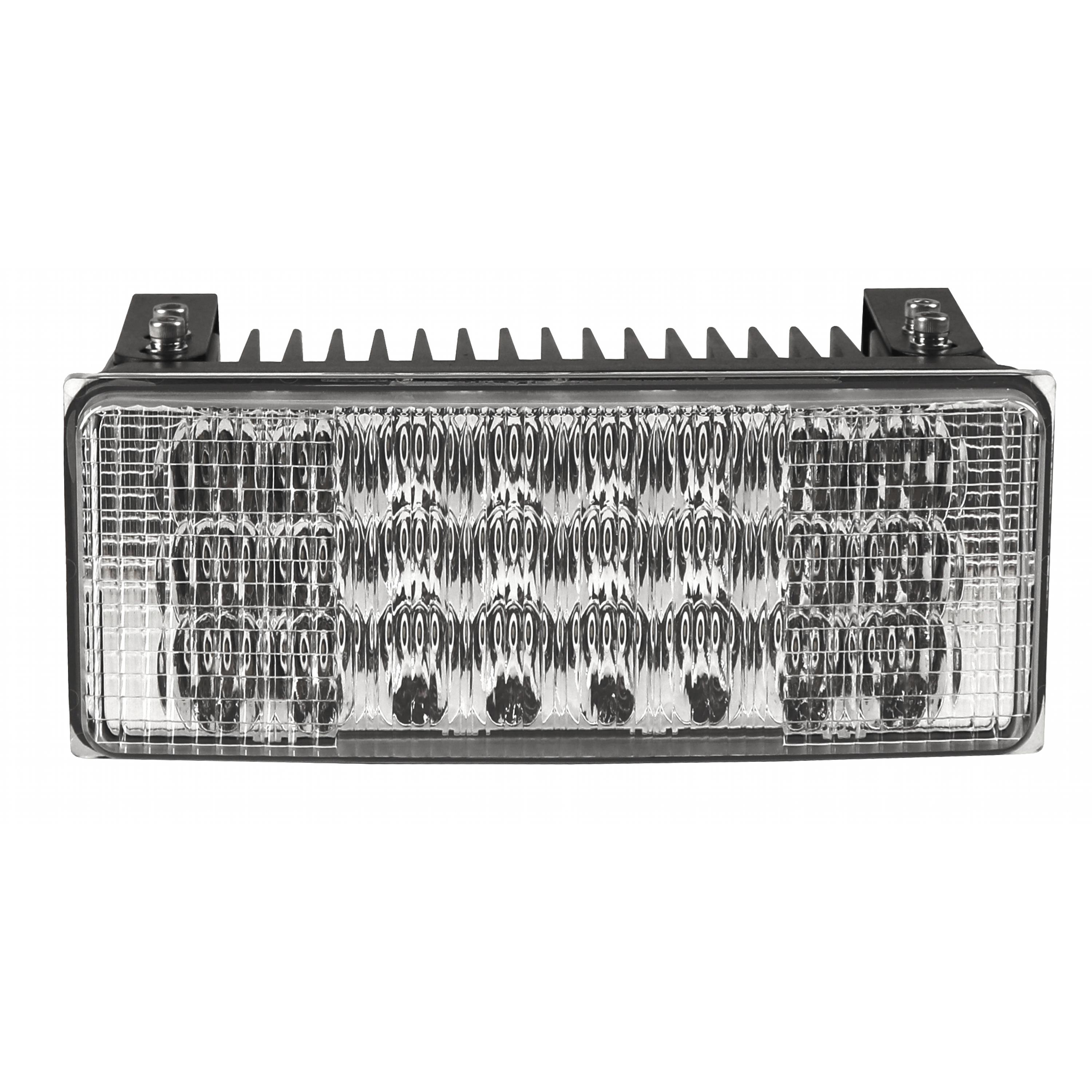

CREE LED Center Headlamp, Flood/Spot Combo, 9000 Lumens

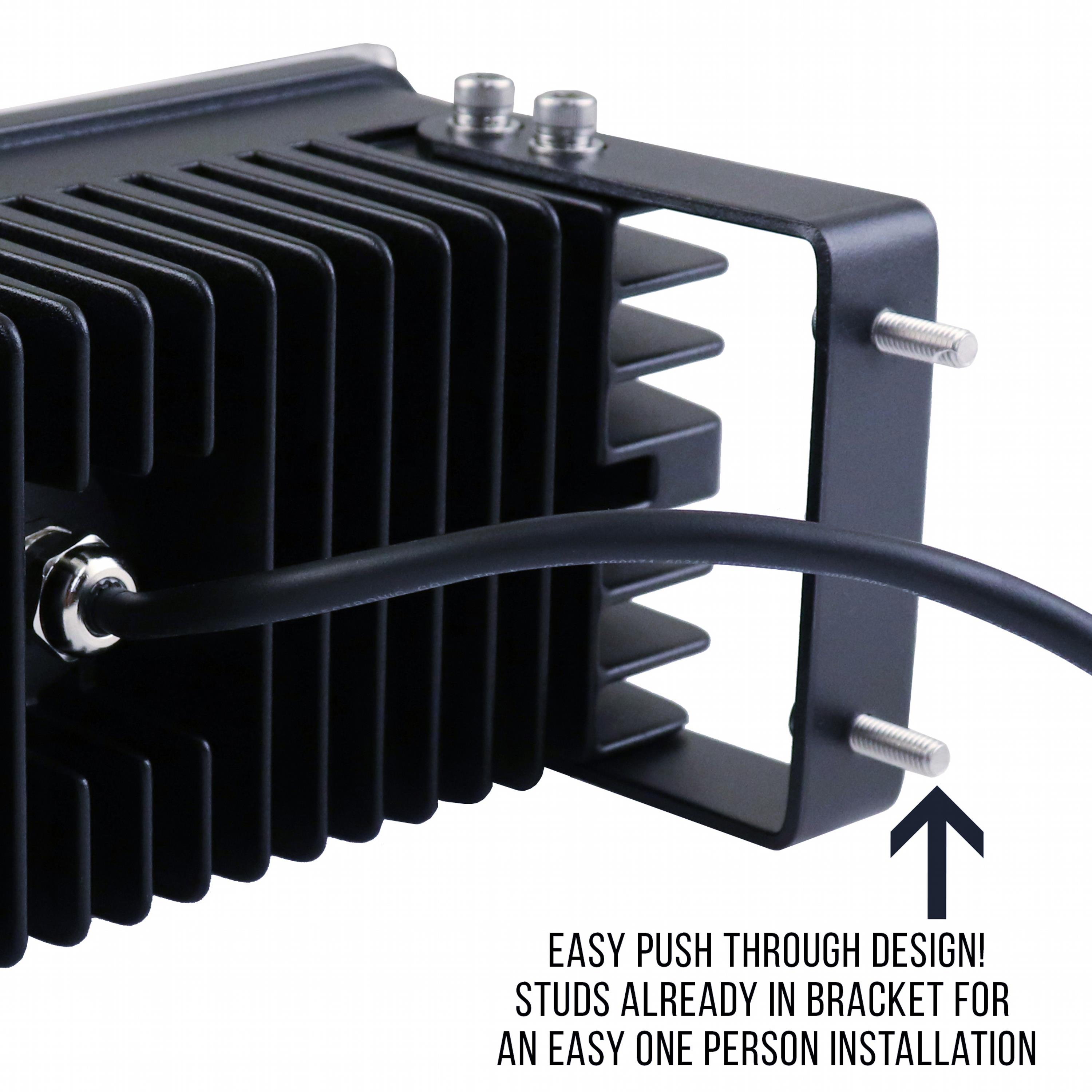

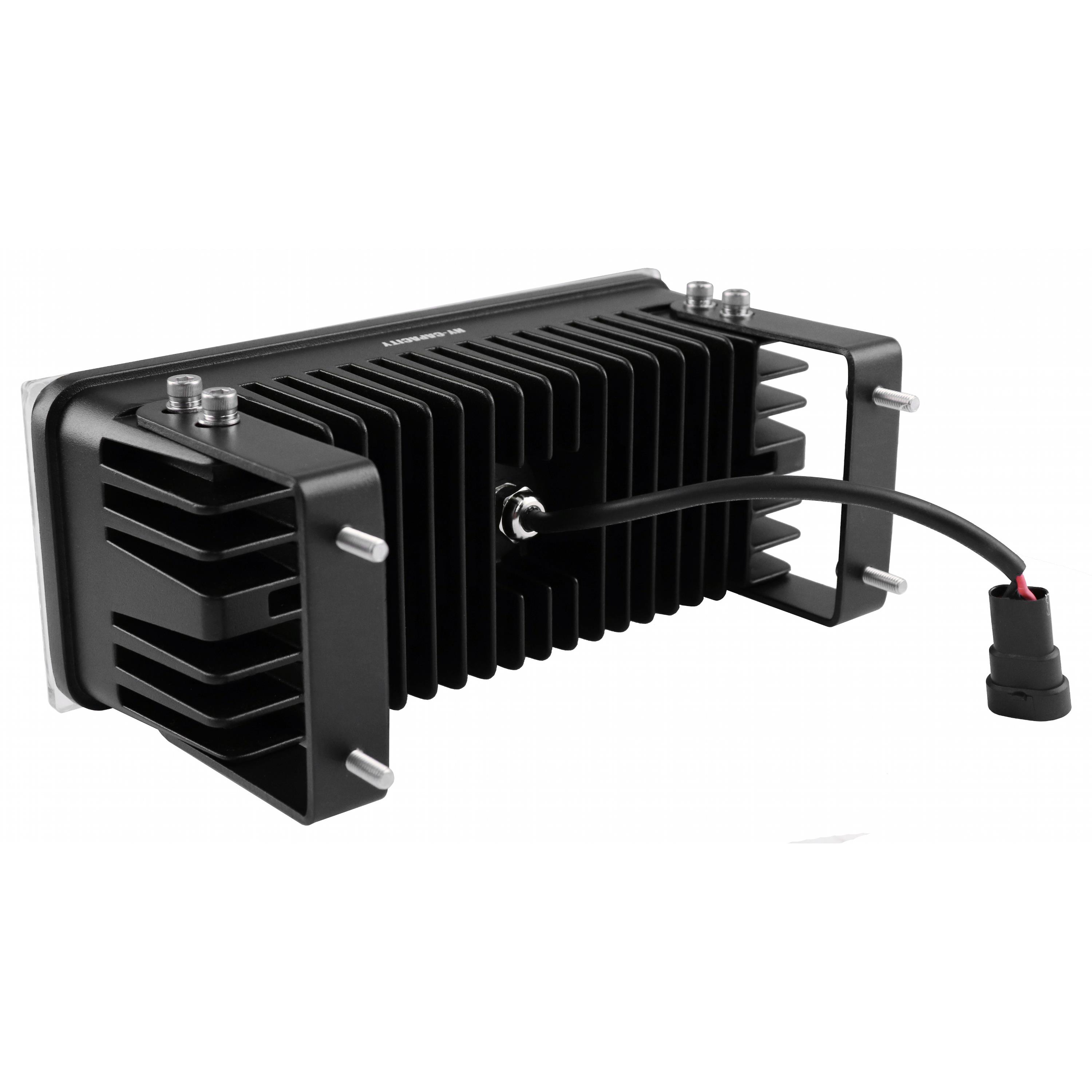

Center Mounted Lamp.No need to stand on your head for installation. The studs are already in the bracket for an easy one person installation! This lamp is guaranteed to mount flush for a clean, consistent look. It has been designed with larger cooling fins to dissipate heat will provide you triple the light output. Recommended for off-road applications.

Manufacturer: Hy-Capacity

SKU: HA232454

Availability:

In stock

$124.85

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Lumen Range	5000 - 9999
Dimensions	10.25" x 4.25"
Location	Center Headlamp
New/Reman	New
Waterproof Rating	IP69K
Installation	Plug & Play Connection
Amps (@12V)	10
Sold As	Each
Lens Material	Polycarbonate
Volts	9-32V
Watts	120
Diode Manufacturer	CREE LED
Beam Style	Flood/Spot Combo
Shape	Rectangular

Products specifications

Attribute name	Attribute value
Lumen Range	5000 - 9999
Dimensions	10.25" x 4.25"
Location	Center Headlamp
New/Reman	New
Waterproof Rating	IP69K
Installation	Plug & Play Connection
Amps (@12V)	10
Sold As	Each
Lens Material	Polycarbonate
Volts	9-32V
Watts	120
Diode Manufacturer	CREE LED
Beam Style	Flood/Spot Combo
Shape	Rectangular

Product tags

232454A1 (2)
,
232455A2 (2)
,
232454A2 (2)

Use On Below Models (Click to expand)

Case IH

Sprayer: 3020 Titan 3030 Titan Tier 4 3040 Titan Tier 4B 3230 Patriot 3330 Patriot 3520 Titan 3530 Titan Tier 4 3540 Titan Tier 4B 4420 Patriot 4430 Patriot SPX3320 Patriot SPX4260 Patriot 4260 >11-2001 - otherwise use LED-1202 SPX4410

Spreader: 4020 Titan 4030 Titan Tier 4 4520 Titan 4530 Titan Tier 4 FLX3010 FLX3300B FLX3510 FLX4010 FLX4510

Tractor: MX180 MX200 MX210 MX220 MX230 MX240 MX255 MX270 MX285 STX275 STX280 STX325 STX330 STX375 STX380 STX425 STX430 STX440 STX450 STX480 This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT STX500 STX530 This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT

Steiger

Tractor: 280 330 335 380 385 430 435 480 This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT 485 This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT 530 This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT 535 This Machine is Equipped w/ 2 Center Lamps, Order Qty. of 2. Also available in Kit HA87429393 KIT
