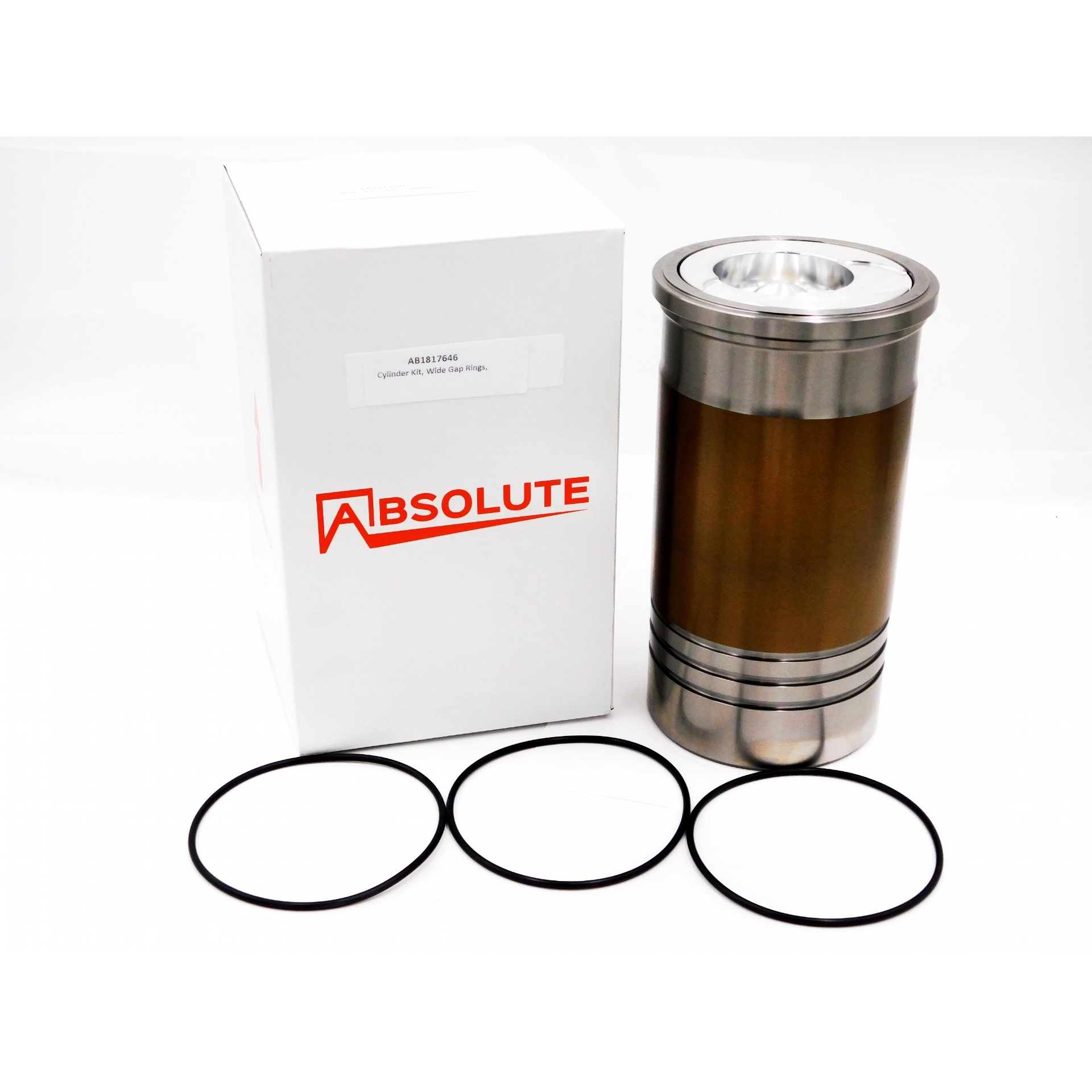

Cylinder Kit, Wide Gap Rings

Be the first to review this product

Includes: • (1) ##HCAB1810504## Cylinder Liner • (1) ##HCAB680086## Liner Sealing Ring Kit • (1) ##HCAB1817247## Piston Ring Set • (1) Piston w/ Pin & Retainers

Manufacturer: Hy-Capacity

SKU: HCAB1817646

Vendor: Granit

Availability:

In stock

$134.32

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

Case IH

COMBINE: 1660 IH DT466 Diesel, Wide Bearings, 1.30" Main Brg, 1.26" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover 1680 IH DT466 Diesel, Wide Bearings, 1.30" Main Brg, 1.26" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover

COTTON PICKER: 1844 IH DT466 Diesel, Wide Bearings, 1.30" Main Brg, 1.26" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover

International

Combine: 1480 IH DT466 Diesel

CRAWLER/DOZER: TD15C IH DT466 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover

Tractor: 5488 IH DT466 Diesel 7288 IH DT466 Diesel, Wide Bearings, 1.30" Main Brg, 1.26" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover 7488 IH DT466 Diesel, Wide Bearings, 1.30" Main Brg, 1.26" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover

TRACTOR: 3588 IH DT466 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover 3788 IH DT466 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover 4366 IH DT466 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover 4386 IH DT466 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover 5288 IH DT466 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover 6588 IH DT466 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover 6788 IH DT466 Diesel, Narrow Bearings, 1.22" Main Brg, 1.18" Rod Brg & Wide Ring Gap (Second Ring: .065" - .075"), Breather on Valve Cover
