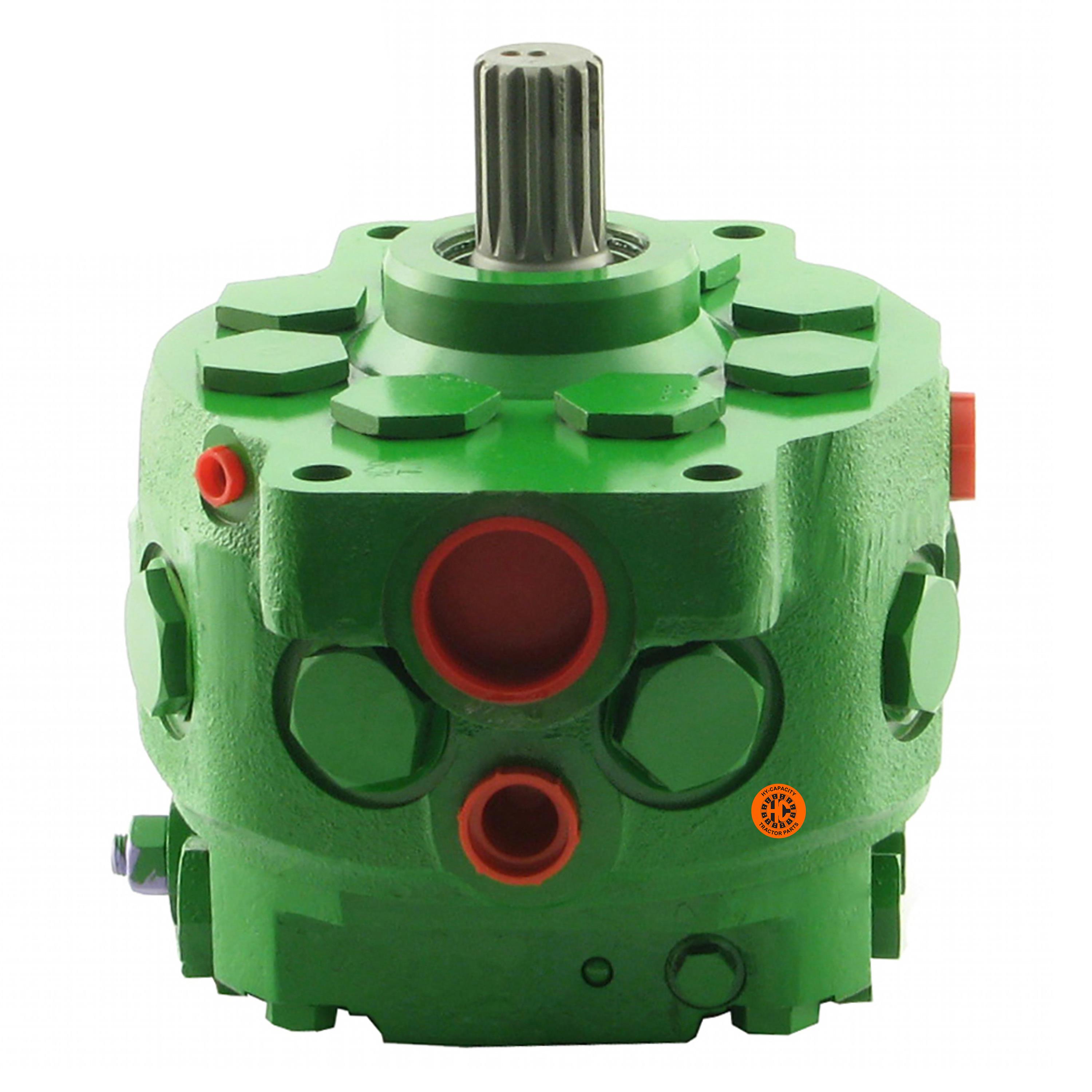

Hydraulic Pump, 15 GPM, Splined Shaft, Non-Serialized

Be the first to review this product

8 piston, 15 GPM, non-serialized pump. Built using all new components. Pressure set to OEM specifications & flow tested at operating temperature in our Iowa facility.

Everyone knows how important hydraulics are. Read our blog post, "What Makes Hy-Capacity Hydraulic Pumps so Great?" here.

Manufacturer: Vendor: Hy-Capacity

SKU: R94657N

Availability:

In stock

$1,093.05

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Dimensions	[A] 1-1/16" Suction; [B] 1-5/8" Suction; [C] 7/8" Pressure; [D] 7/8" Cooler
Displacement	2.4 CI / REV
Flow Rate	15 GPM
New/Reman	New
Shaft	Splined
Sold As	Each
Warranty	1 Year
Location	Engine

Products specifications

Attribute name	Attribute value
Dimensions	[A] 1-1/16" Suction; [B] 1-5/8" Suction; [C] 7/8" Pressure; [D] 7/8" Cooler
Displacement	2.4 CI / REV
Flow Rate	15 GPM
New/Reman	New
Shaft	Splined
Sold As	Each
Warranty	1 Year
Location	Engine

Product tags

John Deere Hydraulic Pump Ports (1)

Use On Below Models (Click to expand)

John Deere

Cotton Picker: 9950 S/N 2000->, Splined Shaft Pump 9950 S/N 2000-> 9960 9960 Splined Shaft Pump 9965 Splined Shaft Pump 9965 9970 Splined Shaft Pump 9970

Loader Backhoe: 500 500 Splined Shaft Pump

Tractor: 1830 Splined Shaft Pump 1830 1840 1840 Splined Shaft Pump 2030 Splined Shaft Pump, Models Produced in Waterloo, Iowa. 2030 Models Produced in Waterloo, Iowa. 2130 2130 Splined Shaft Pump 2155 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 2155 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2350 Splined Shaft Pump 2350 2355 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2355 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 2440 2440 Splined Shaft Pump 2510 Also order 1-##6408-20## Plug. A 4 piston splined shaft pump is original for this model. 2510 Also order 1-6408-20 Plug. A 4 piston splined shaft pump is original for this Model. No Core Credit will be issued. 2550 2550 Splined Shaft Pump 2555 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2555 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 2630 Splined Shaft Pump 2630 2640 Splined Shaft Pump 2640 2750 2750 Splined Shaft Pump 2755 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 2755 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2840 2840 Splined Shaft Pump 2855N Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 2855N Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 2940 Splined Shaft Pump 2940 2950 Splined Shaft Pump 2950 2955 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 2955 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3030 Splined Shaft Pump 3030 3040 3040 Splined Shaft Pump 3050 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 3050 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3055 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3055 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 3130 Splined Shaft Pump 3130 3140 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3140 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 3150 3150 Splined Shaft Pump 3155 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 3155 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3255 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3255 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 3350 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity 3350 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 3640 Option for drive-thru hydraulic pump with front PTO on this model, not available from Hy-Capacity. 3640 Splined Shaft Pump; Drive thru Hydraulic Pump w/ Front PTO is an Option for this Model, (Shaft Goes Thru the Pump)-Not Available from Hy-Capacity
