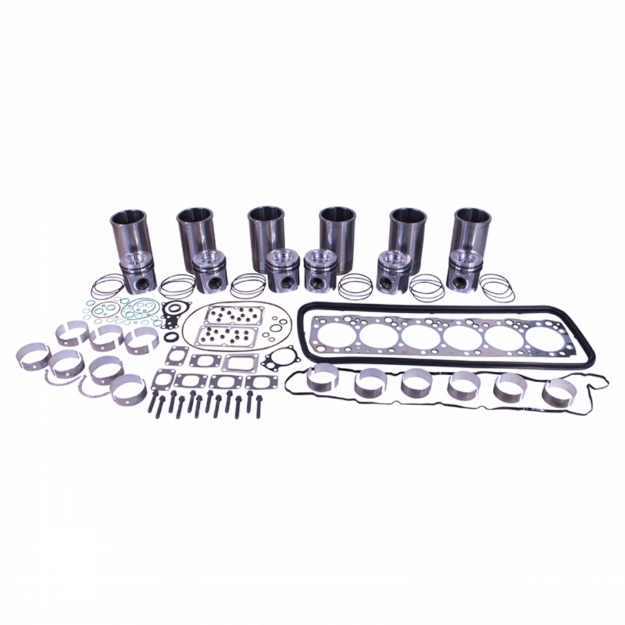

Inframe Overhaul Kit, Iveco C9 Diesel

Be the first to review this product

Includes:

(12) ##HCR11504126229## Connecting Rod Capscrews
(6) ##HCR11500055472## Cylinder Kits
(1) ##HCR118094891## Head Gasket Set
(1) Main Bearing Set, Specify Bearing Size when Ordering, Std., .127mm, .254mm or .508mm
(1) ##HCR11504346309## Oil Pan Gasket
(6) Rod Bearings, Specify Bearing Size when Ordering, Std., .127mm, .254mm or .508mm
(2) ##HCR112996590## Thrust Washer Sets

Manufacturer: Hy-Capacity

SKU: HCRRP1442

Availability:

In stock

$2,960.60

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Iveco
Piston Marked	500055469, 504254755, 500055469, 504254755
Engine CID	531
Fuel Type	Diesel
Cylinder Count	6
Bore	4.606"
Stroke Length	5.315"
Rod Journal Dimensions	3.2250" - 3.2260"
Main Journal Dimensions	3.660-3.661"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Iveco
Piston Marked	500055469, 504254755, 500055469, 504254755
Engine CID	531
Fuel Type	Diesel
Cylinder Count	6
Bore	4.606"
Stroke Length	5.315"
Rod Journal Dimensions	3.2250" - 3.2260"
Main Journal Dimensions	3.660-3.661"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

Case IH

TRACTOR: 235 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 250 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 260 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 280 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 290 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 310 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 315 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 340 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 370 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 380 Magnum Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755

New Holland

Tractor: T8.275 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.300 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.320 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.330 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.350 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.360 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.380 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.390 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.410 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.420 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T8.435 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T9.390 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 T9.435 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755

Steiger

Tractor: 350 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755 370 Iveco C9 Diesel, Tier 4, 24 valve, piston 500055469 or 504254755
