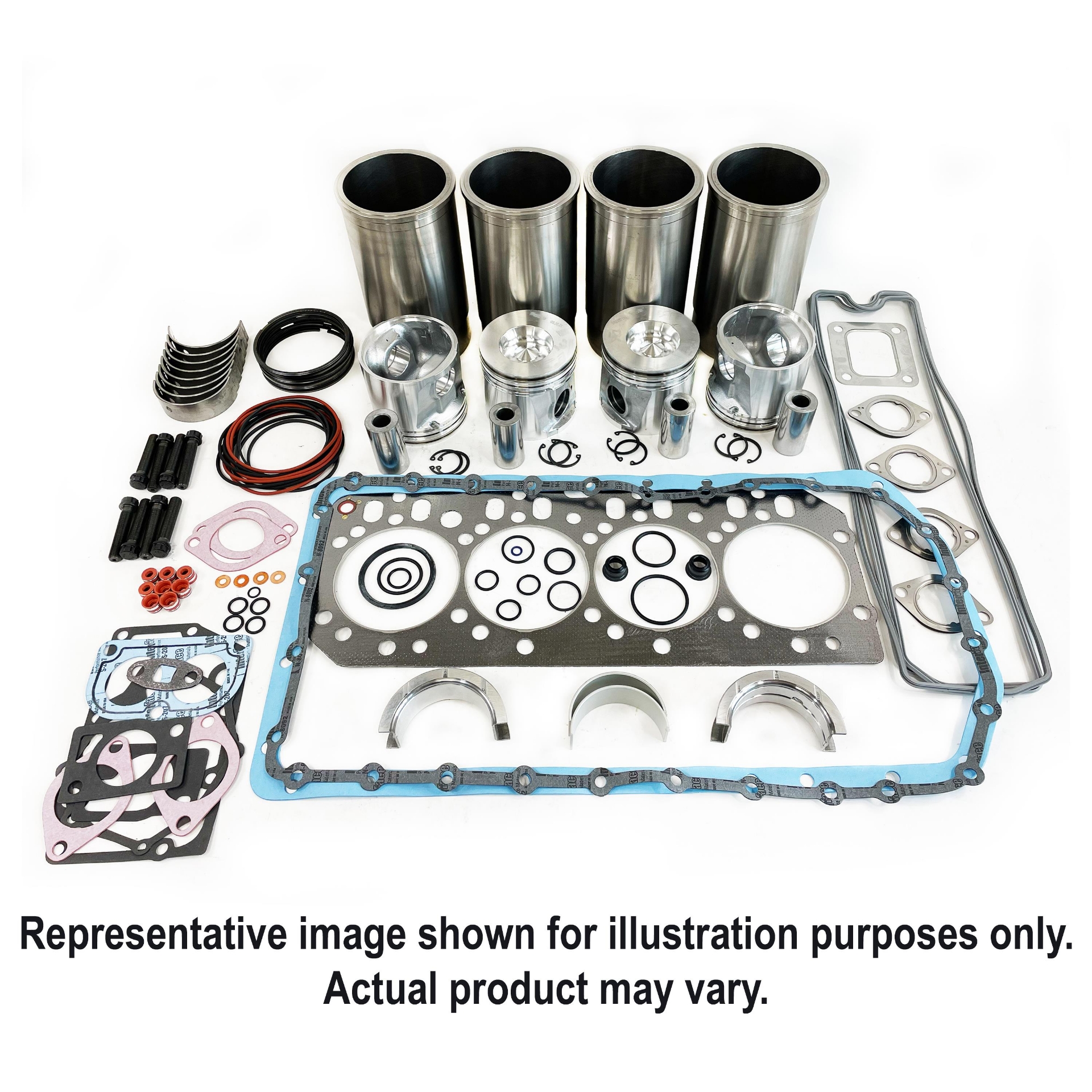

Inframe Overhaul Kit, John Deere 4-239D; 4039D Diesel Engine, High Ring Piston

For engine 4239D use connecting rod #R80034, R51727 & piston #RE30250. For engine 4039D use connecting rod #R80034, blocked marked R88984 & piston #RE30250, RE18697. If your connecting rod is marked R58979 or R51727, you MUST order ##HCTR74194## capscrews separately. Includes:
  • (4) ##HCTRE30250## Cylinder Kits
  • (4) ##HCTRE27348## Rod Bearings
  • (4) ##HCTRE27352## Main Bearings
  • (1) ##HCTAT21139## Thrust Bearing
  • (1) ##HCTRE38851## Head Gasket Set
  • (1) ##HCTR97342## Oil Pan Gasket
  • (8) ##HCTR80033## Connecting Rod Bolts
  • (8) ##HCTRE31617## Valve Stem Seals
Manufacturer: Hy-Capacity
SKU: HCTIK86992
In stock
$697.64
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

Products specifications
Attribute name Attribute value
Engine Manufacturer John Deere
Block Marked R88984
Connecting Rod Marked R51727
Piston Marked RE18697, RE30250, RE18697, RE30250
Piston Pin Dia. 1.375"
Engine Notes 1.375" Piston Pin Diameter, High Ring Piston, Naturally Aspirated, 1.375" Piston Pin Diameter, High Ring Piston, Naturally Aspirated
Engine CID 239
Fuel Type Diesel
Cylinder Count 4
Bore 4.193"
Stroke Length 4.331"
Rod Journal Dimensions 2.7480" - 2.7488"
Main Journal Dimensions 3.1230-3.1240"
New/Reman New
Sold As Each
Warranty 1 Year
Products specifications
Attribute name Attribute value
Engine Manufacturer John Deere
Block Marked R88984
Connecting Rod Marked R51727
Piston Marked RE18697, RE30250, RE18697, RE30250
Piston Pin Dia. 1.375"
Engine Notes 1.375" Piston Pin Diameter, High Ring Piston, Naturally Aspirated, 1.375" Piston Pin Diameter, High Ring Piston, Naturally Aspirated
Engine CID 239
Fuel Type Diesel
Cylinder Count 4
Bore 4.193"
Stroke Length 4.331"
Rod Journal Dimensions 2.7480" - 2.7488"
Main Journal Dimensions 3.1230-3.1240"
New/Reman New
Sold As Each
Warranty 1 Year
