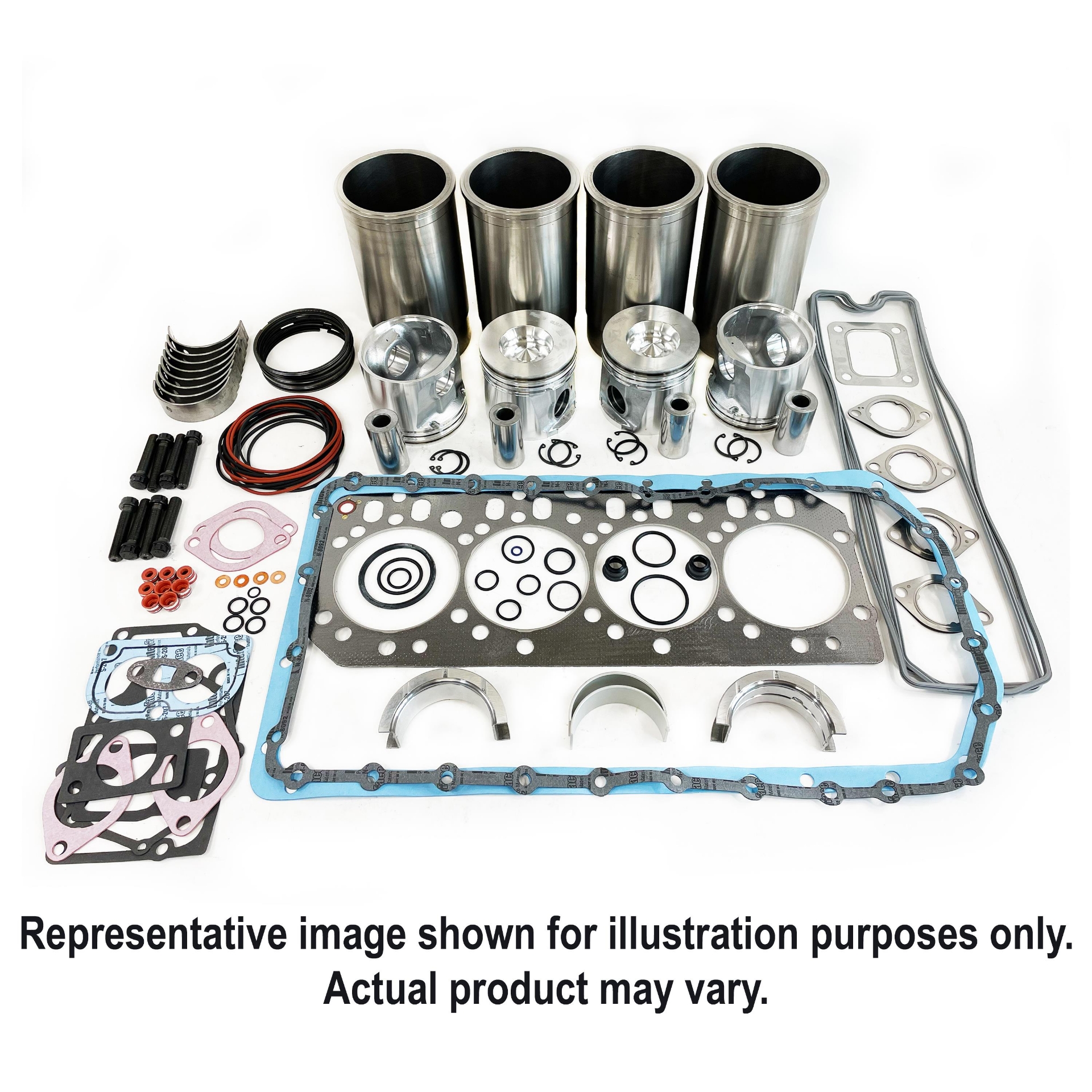

Inframe Overhaul Kit, John Deere 4-270D Diesel Engine

Includes: • (4) ##HCTRE23170## Cylinder Kits • (4) ##HCTAR45723## Rod Bearings • (4) ##HCTAR74814## Main Bearings • (1) ##HCTAR77748## Thrust Bearing • (1) ##HCTAR77747## Thrust Washer Set • (1) ##HCTAR53032## Head Gasket Set • (1) ##HCTR71917## Oil Pan Gasket • (8) ##HCTR66452## Connecting Rod Bolts

Manufacturer: Hy-Capacity

SKU: HCTIK17898

Availability:

In stock

$1,231.19

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R40910, R46350, R46430, R40910, R46350, R46430
Connecting Rod Marked	R26047, R52225, R58880, R69923, R26047, R52225, R58880, R69923
Piston Pin Dia.	1.500"
Engine Notes	1.50" Piston Pin Diameter, Bore: 4.250", Naturally Aspirated, Replacement Block, 1.50" Piston Pin Diameter, Bore: 4.250", Naturally Aspirated, Replacement Block
Engine CID	254
Fuel Type	Diesel
Cylinder Count	4
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725", 3.3715-3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R40910, R46350, R46430, R40910, R46350, R46430
Connecting Rod Marked	R26047, R52225, R58880, R69923, R26047, R52225, R58880, R69923
Piston Pin Dia.	1.500"
Engine Notes	1.50" Piston Pin Diameter, Bore: 4.250", Naturally Aspirated, Replacement Block, 1.50" Piston Pin Diameter, Bore: 4.250", Naturally Aspirated, Replacement Block
Engine CID	254
Fuel Type	Diesel
Cylinder Count	4
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725", 3.3715-3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

John Deere

Engine: 400 Series Engine 4.270D

Loader Backhoe: 500 4-270 Diesel, S/N <-280,000, w/ Replacement Block 500A 4-270 Diesel, S/N <-280,000, w/ Replacement Block

LOADER BACKHOE: 500 4270 Diesel, S/N <-280,000, w/ Replacement Block 500A 4270 Diesel, S/N <-280,000, w/ Replacement Block

Tractor: 3010 4-270 Diesel, S/N <-280,000, w/ Replacement Block 3020 4-270 Diesel, S/N <-280,000, w/ Replacement Block

TRACTOR: 3010 4270 Diesel, S/N <-280,000, w/ Replacement Block 3020 4270 Diesel, S/N <-280,000, w/ Replacement Block
