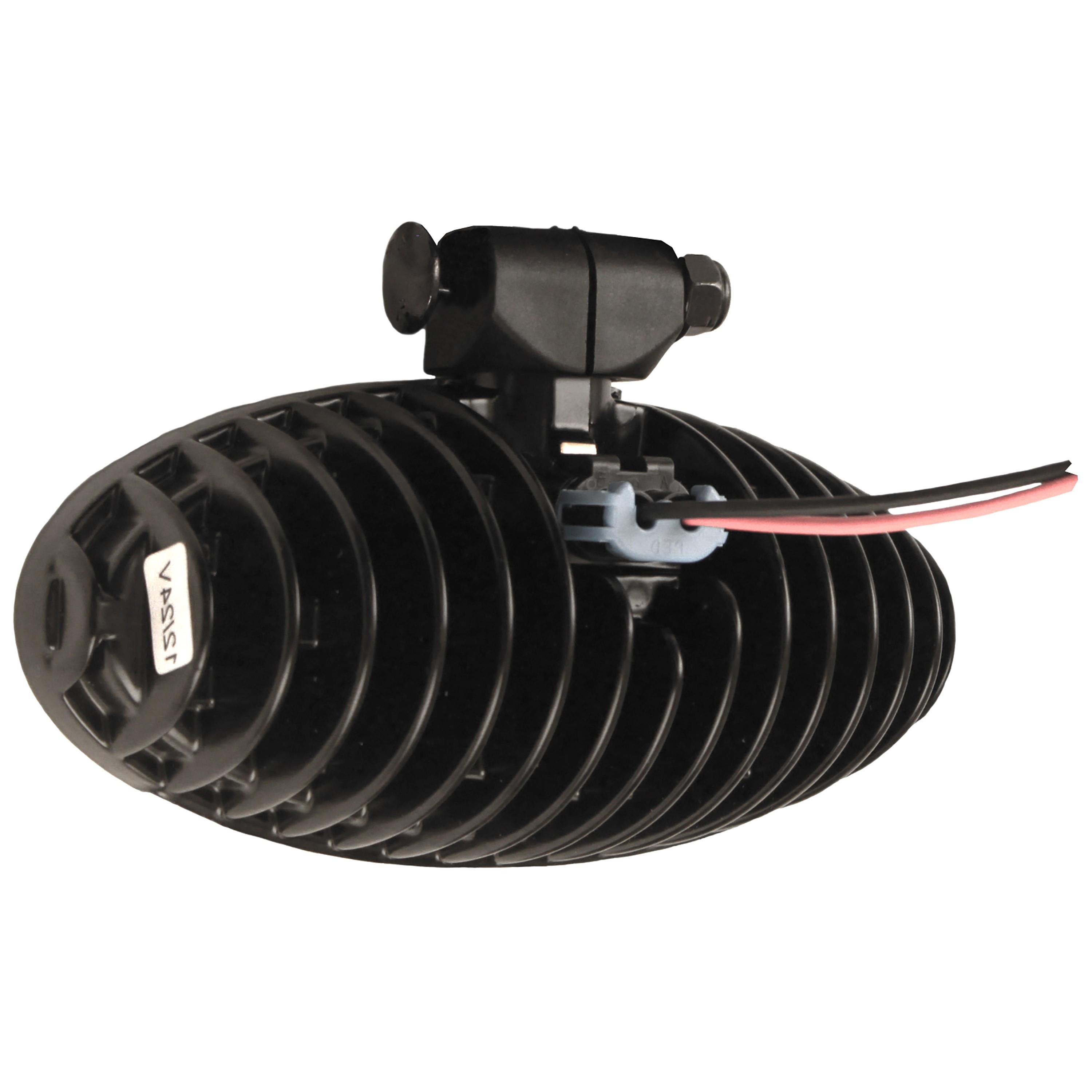

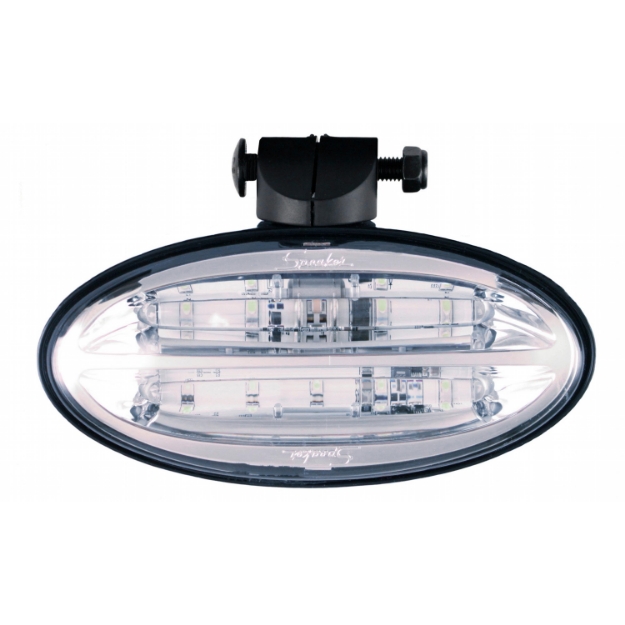

OSRAM LED Flood Beam Cab Roof Light for John Deere Combines, 3600 Lumens

Cab Roof Lamp.These lamps are a little wider than OE. If installing three of these lamps, one will need to be set back about a 1/2". Recommended for off-road applications.

Manufacturer: Hy-Capacity

SKU: HR212522

Availability:

In stock

$96.24

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Lumen Range	2000 - 2999
Installation	Plug & Play Connection
Lens Material	Glass
Quality	Genuine
Waterproof Rating	IP67
Shape	Oval
Dimensions	3.25" x 6.50"
Raw Lumens	2750
Amps (@12V)	2
New/Reman	New
Sold As	Each
Beam Style	Flood Beam
Watts	24
Location	Cab Front
Diode Manufacturer	JW Speaker LED
Volts	12-24V

Products specifications

Attribute name	Attribute value
Lumen Range	2000 - 2999
Installation	Plug & Play Connection
Lens Material	Glass
Quality	Genuine
Waterproof Rating	IP67
Shape	Oval
Dimensions	3.25" x 6.50"
Raw Lumens	2750
Amps (@12V)	2
New/Reman	New
Sold As	Each
Beam Style	Flood Beam
Watts	24
Location	Cab Front
Diode Manufacturer	JW Speaker LED
Volts	12-24V

Product tags

AH212522 (1)

Use On Below Models (Click to expand)

John Deere

Combine: 9540iWTS Eff. S/N 078556, Cab Lamp 9540WTS Eff. S/N 078556, Cab Lamp 9560 S/N 715601->, Cab Lamp 9560iWTS Eff. S/N 078556, Cab Lamp 9560SH Eff. S/N 715101, Cab Lamp 9560STS S/N 715301->, Cab Lamp 9560WTS Eff. S/N 078556, Cab Lamp 9570STS Upper Fascia lamp 9580iWTS Eff. S/N 078556, Cab Lamp 9580WTS Eff. S/N 078556, Cab Lamp 9640iWTS Eff. S/N 078556, Cab Lamp 9640WTS Eff. S/N 078556, Cab Lamp 9660 S/N 715201->, Cab Lamp 9660iWTS Eff. S/N 078556, Cab Lamp 9660STS S/N 715601->, Cab Lamp 9660WTS S/N 078556->, Cab Lamp 9670STS Upper Fascia lamp 9680iWTS S/N 078556->, Cab Lamp 9680WTS S/N 078556->, Cab Lamp 9760STS S/N 715401->, Cab Lamp 9770STS Upper Fascia lamp 9780CTS S/N 078556->, Cab Lamp 9780iCTS S/N 078556->, Cab Lamp 9860STS S/N 715601->, Cab Lamp 9870STS Upper Fascia lamp C670 Upper Fascia lamp S550 Upper Fascia lamp S650 Upper Fascia lamp S660 Upper Fascia lamp S670 Upper Fascia lamp S670 Hillmaster Upper Fascia lamp S680 Upper Fascia lamp S680 Hillmaster Upper Fascia lamp S690 Upper Fascia lamp S690 Hillmaster Upper Fascia lamp S760 Upper Fascia lamp S770 Upper Fascia lamp S780 Upper Fascia lamp S790 Upper Fascia lamp T550 Upper Fascia lamp, Prior to Model Year 2011 T560 Upper Fascia lamp, Prior to Model Year 2011 T660 Upper Fascia lamp, Prior to Model Year 2011 T670 Upper Fascia lamp, Prior to Model Year 2011 W540 Upper Fascia lamp, Prior to Model Year 2011 W550 Upper Fascia lamp, Prior to Model Year 2011 W650 Upper Fascia lamp, Prior to Model Year 2011 W660 Upper Fascia lamp, Prior to Model Year 2011

Cotton Picker: 7660 Upper Fascia lamp 7760 Upper Fascia lamp 9996 Eff. S/N 020001, Cab Lamp CP690 Upper Fascia lamp

Cotton Stripper: 7460 Eff. S/N 20001, Cab Lamp CS690 Upper Fascia lamp

Harvester: 3510 Cab Lamp 3520 Cab Lamp 7180 Cab Lamp 7200 Eff. S/N 508100, Cab Lamp 7250 Cab Lamp 7280 Cab Lamp 7300 Eff. S/N 508100, Cab Lamp 7350 Cab Lamp 7380 Cab Lamp 7400 Eff. S/N 508100, Cab Lamp 7450 Cab Lamp 7480 Cab Lamp 7550 Cab Lamp 7580 Cab Lamp 7700 Eff. S/N 508100, Cab Lamp 7750 Cab Lamp 7780 Cab Lamp 7800 Eff. S/N 508100, Cab Lamp 7850 Cab Lamp 7950 Cab Lamp 7980 Cab Lamp 8100 Cab Lamp 8200 Cab Lamp 8300 Cab Lamp 8400 Cab Lamp 8500 Cab Lamp 8600 Cab Lamp 8700 Cab Lamp 9600 Cab Lamp 9700 Cab Lamp 9800 Cab Lamp 9900 Cab Lamp

Windrower: 4895 Eff. S/N 320001, Cab Lamp 4995 Eff. S/N 320001, Cab Lamp A400 Cab Lamp D450 Cab Lamp R450 Cab Lamp
