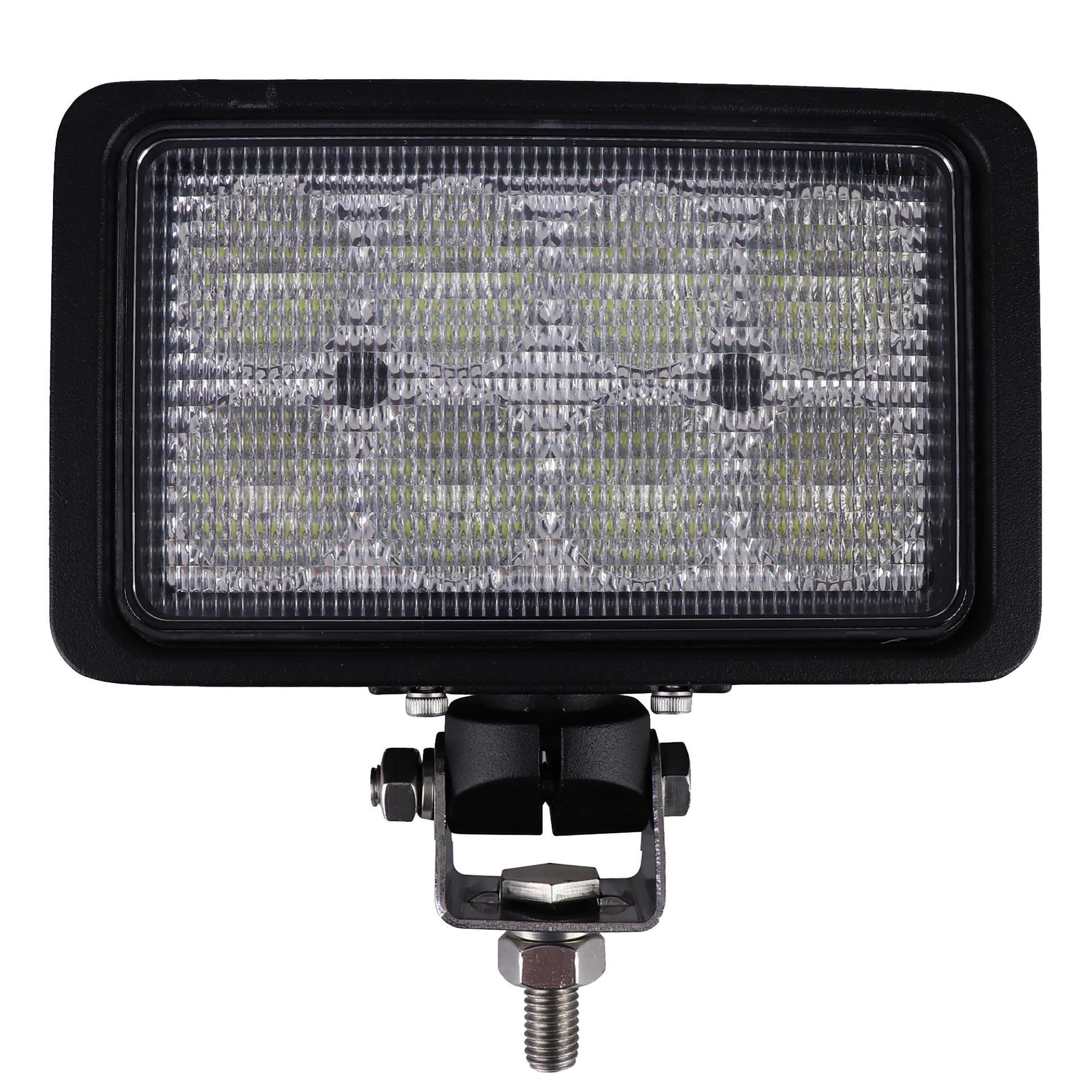

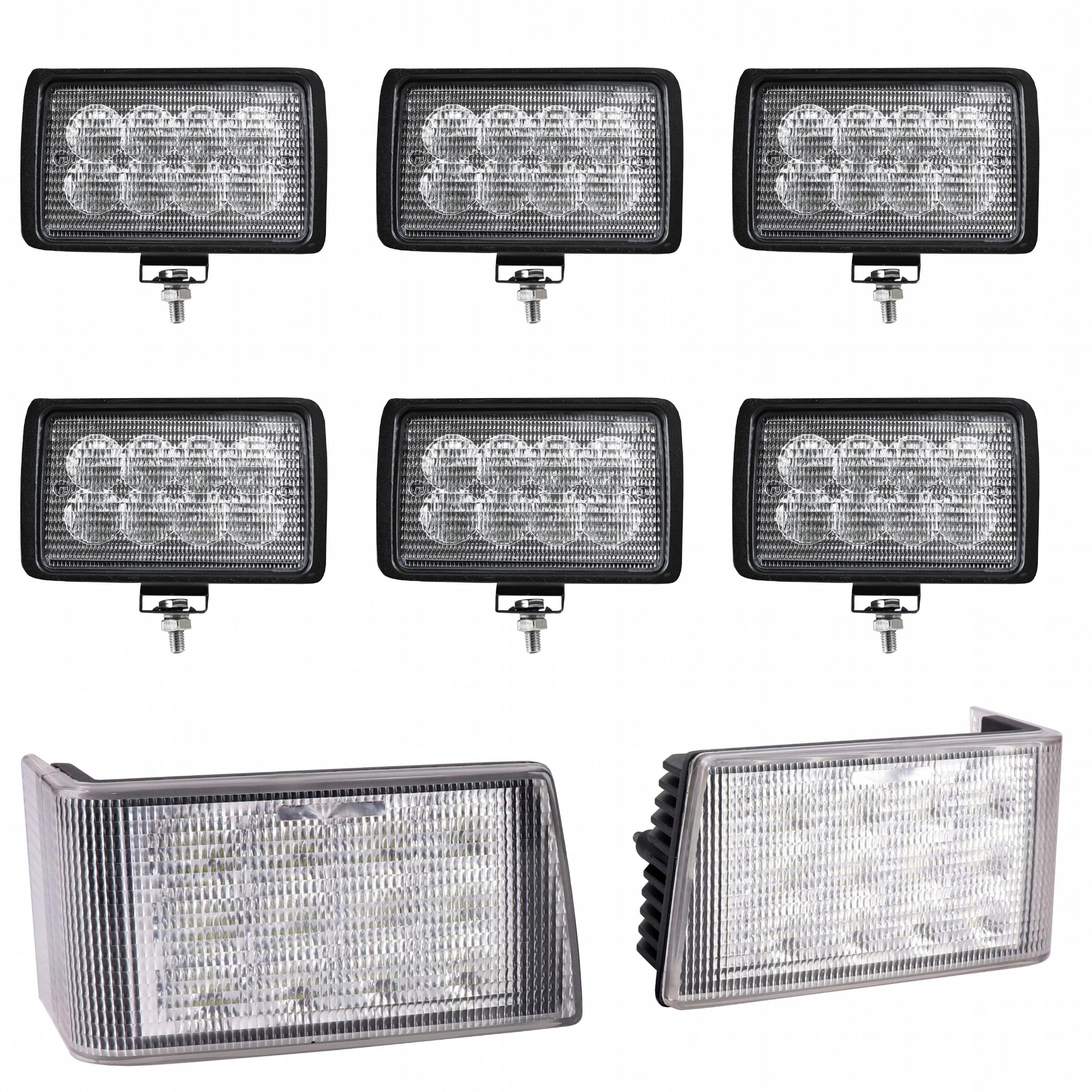

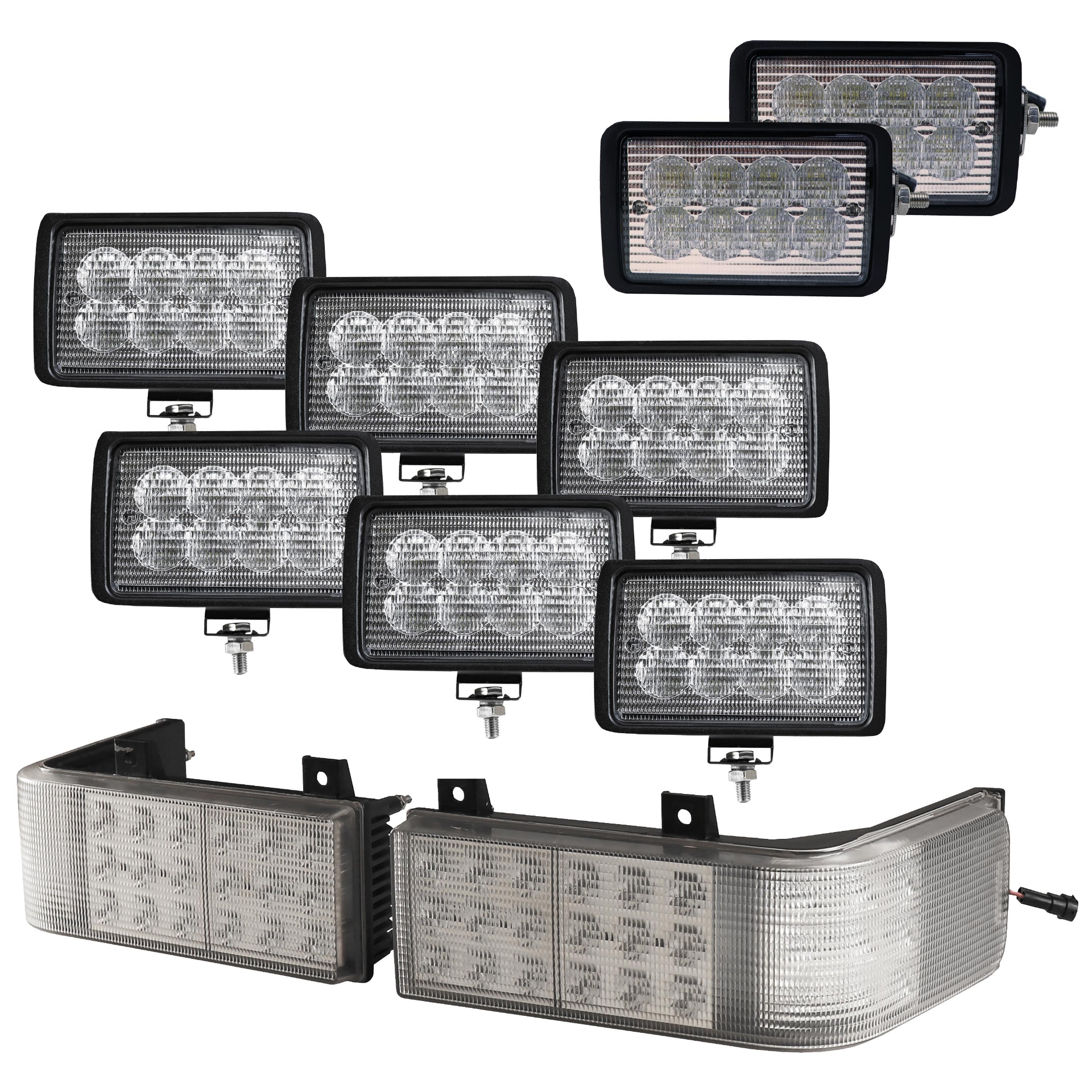

LED-414, Fascia Lights for JD S series and more
Very powerful light at 2000 effective lumen! 60° flood beam.
Note that the forward-facing lights are LOW beam OEM, we do not have this option, if you order the forward-facing lights they will be flood beam. Also note that those 2 lights are only turned on when combine lights are in road mode.
If you do not have existing fascia lights, check and make sure the harness is there for the lights - if not JD part # AL207104 is the harness. Note that if you do this, you might need to access some codes in the computer to turn the lights on in the system. The cost of this harness is around $260 from JD.
Specs :
Watt : 40 Watt - 4 x 10 Watt OSRAM
Power used: 32W / 2.56A @ 12.5 Volt
Lumen: 4000 Raw, 3300 Effective
Kelvin: 5500K
Beam: 60° Flood or 15° spot
Volt: 10-30 volt
IP: 68 - (water resistant in fresh water to a maximum depth of 1.5 metres for up to 30 minutes)
Lens: Polycarbonate
Material: Diecast Aluminum Housing
RFI and EMC filter
Lifetime: >30000 hours
Size : 3.3 x 3.75 x 3 inch
Weight: 1.1 LB
Warranty : 5 years
Built-in DT with 9005 & H11 connector
led414, LED-414
