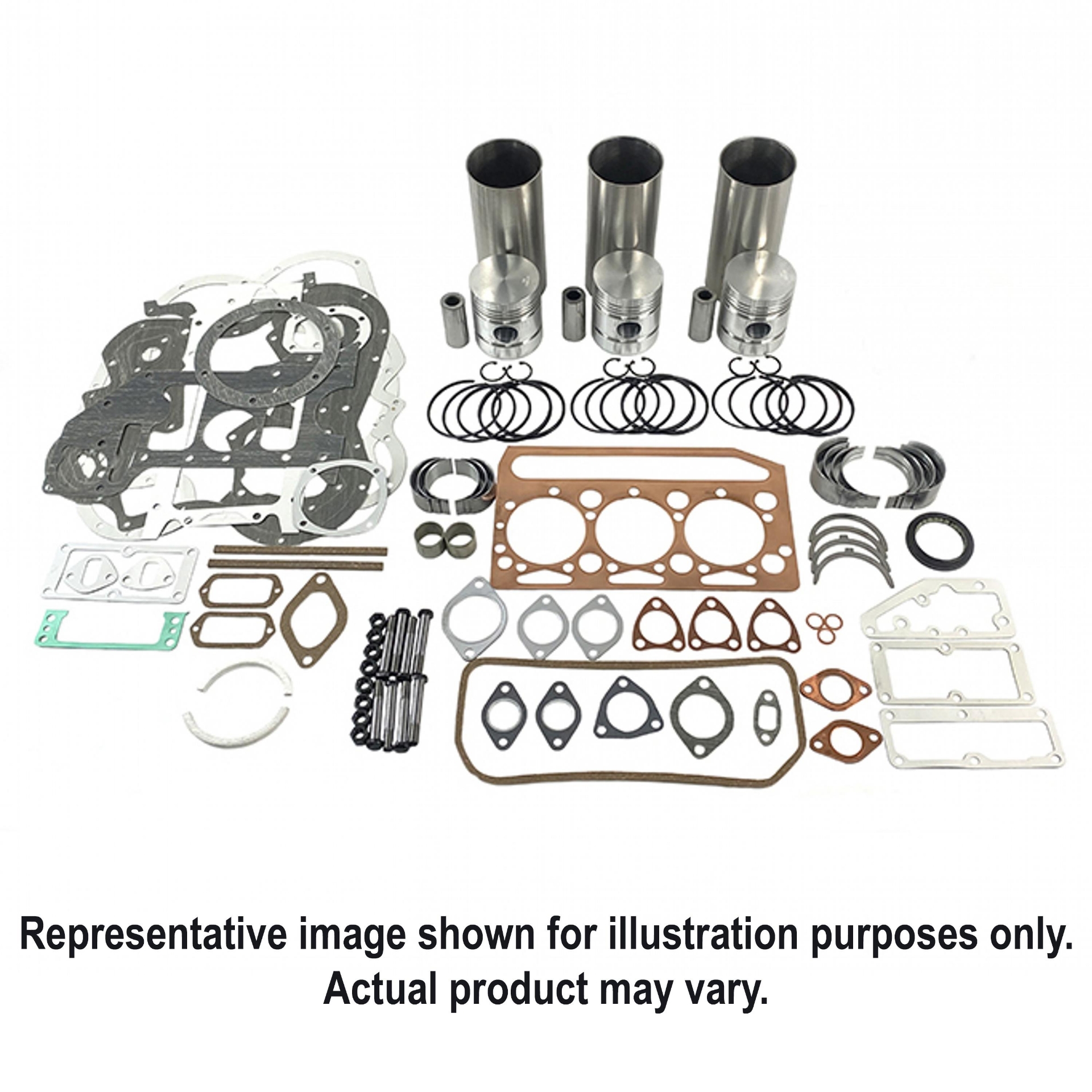

Major Overhaul Kit, John Deere 3-152D Diesel Engine, O-Rings on Liner

Includes: • (3) ##HCTPLK481## Cylinder Kits • (3) ##HCTRE27348## Rod Bearings • (3) ##HCTRE27352## Main Bearings • (1) ##HCTAT21139## Thrust Bearing • (1) ##HCTRE38570## Overhaul Gasket Set • (1) ##HCTAR67942## Front Crank Seal • (3) ##HCTT23471## Piston Pin Bushings • (1) Rear Crank Seal • (6) ##HCTR74194## Connecting Rod Bolts • (1) ##HCTMX504## Grommet Kit

Manufacturer: Hy-Capacity

SKU: HCTOK3481

Availability:

In stock

$681.31

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	T24963, T26935, T24963, T26935
Connecting Rod Marked	R81410, T20007, R81410, T20007
Engine Notes	Naturally Aspirated, O-Rings on Liner, Naturally Aspirated, O-Rings on Liner
Piston Marked	T23481
Engine CID	152
Fuel Type	Diesel
Cylinder Count	3
Bore	3.858"
Stroke Length	4.328"
Rod Journal Dimensions	2.7480" - 2.7490"
Main Journal Dimensions	3.1235-3.1245"
New/Reman	New
Sold As	Each
Warranty	1 Year
