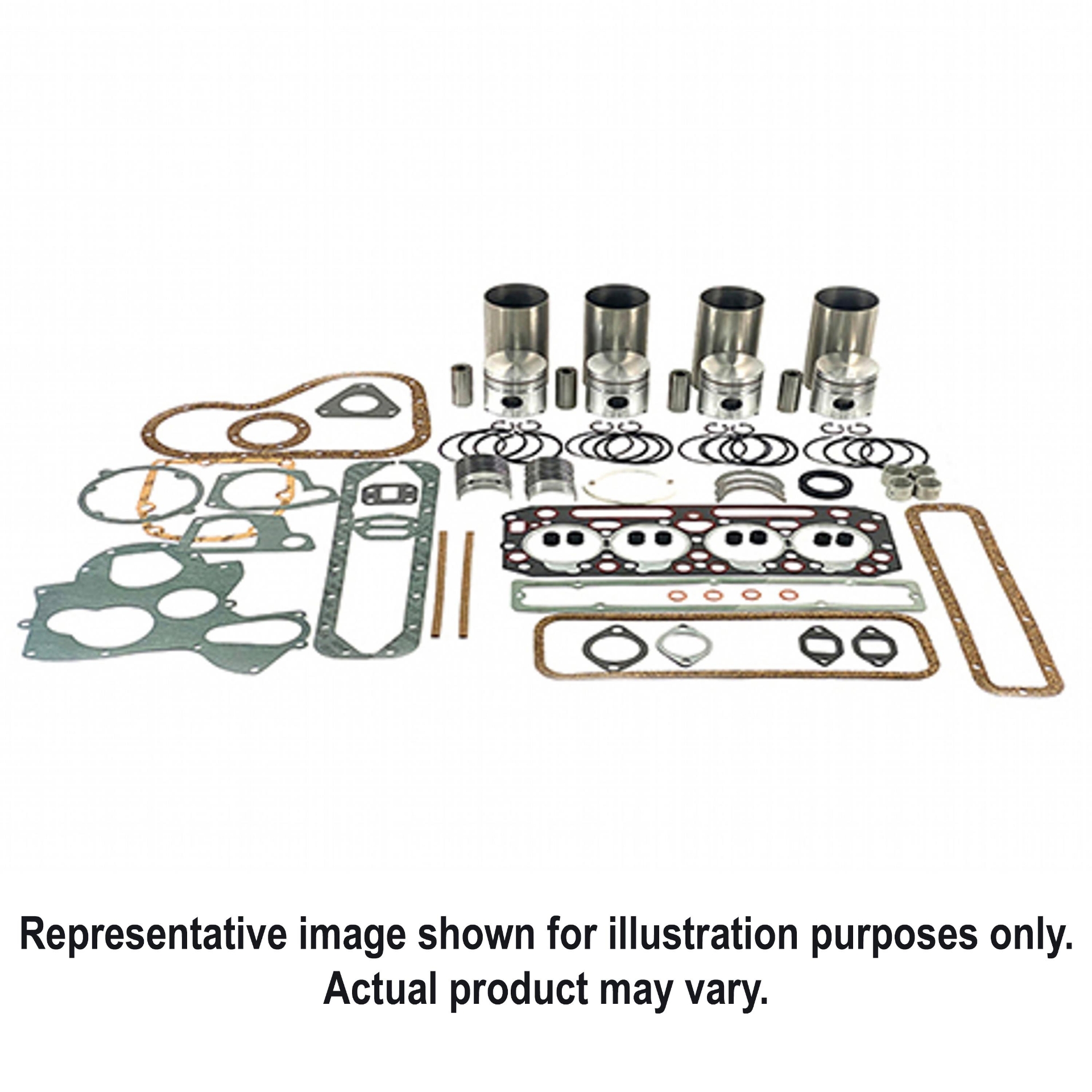

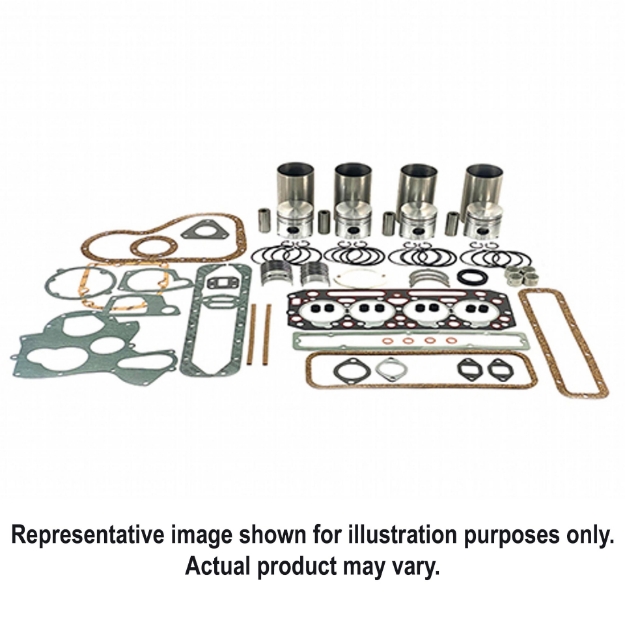

Major Overhaul Kit, John Deere 4-270D Diesel Engine

Includes: • (4) ##HCTPLK163## Cylinder Kits • (4) ##HCTAR45723## Rod Bearings • (4) ##HCTAR49243## Main Bearings • (1) ##HCTAR49242## Thrust Bearing • (1) ##HCTAR53033## Overhaul Gasket Set • (1) ##HCNAR49025## Front Crank Seal • (4) ##HCTR30939## Piston Pin Bushings • (1) ##HCNRE520036## Rear Crank Seal • (3) ##HCTR46903## Cam Bushings • (8) ##HCTR66452## Connecting Rod Bolts

Manufacturer: Hy-Capacity

SKU: HCTOK4163

Availability:

In stock

$1,598.49

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R26160, R32020, R40850, R26160, R32020, R40850
Connecting Rod Marked	R26047, R58880, R66923, R26047, R58880, R66923
Engine Notes	1.500" Piston Pin Diameter, Early Power Booster, 1.500" piston pin diameter, Early Power Booster
Piston Pin Dia.	1.500"
Engine CID	254
Fuel Type	Diesel
Cylinder Count	4
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725", 3.3715-3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R26160, R32020, R40850, R26160, R32020, R40850
Connecting Rod Marked	R26047, R58880, R66923, R26047, R58880, R66923
Engine Notes	1.500" Piston Pin Diameter, Early Power Booster, 1.500" piston pin diameter, Early Power Booster
Piston Pin Dia.	1.500"
Engine CID	254
Fuel Type	Diesel
Cylinder Count	4
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715" - 3.3725", 3.3715-3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

TOK4163 (1)
,
TOK4163-10/30 (1)
,
TOK4163-STD/10 (1)
,
TOK4163NB (1)
,
TOK4163-20/30 (1)
,
TOK4163-30/30 (1)
,
TOK4163-10/20 (1)
,
TOK4163-10/10 (1)
,
TOK4163-20/10 (1)
,
TOK4163-30/10 (1)
,
TOK4163-30/20 (1)

Use On Below Models (Click to expand)

John Deere

Engine: 400 Series Engine 4.270D, Early Power Booster
