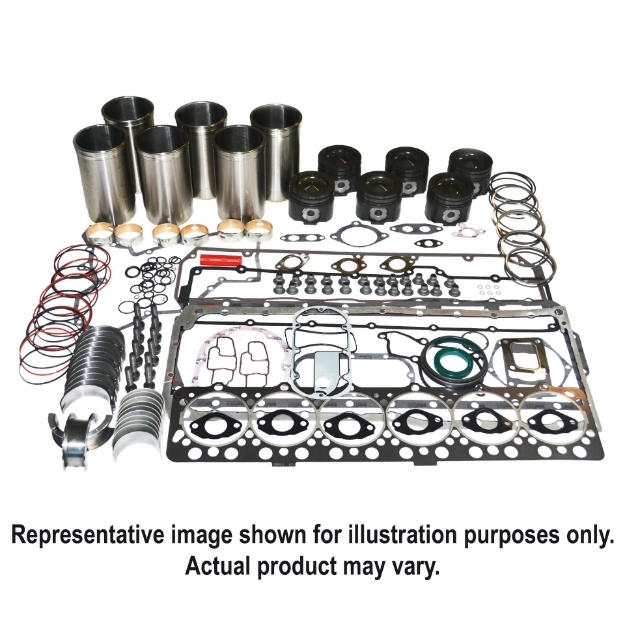

Major Overhaul Kit, John Deere 6-329D Diesel Engine, O-Rings on Liner

Includes: • (6) ##HCTPLK310## Cylinder Kits • (6) ##HCTRE27348## Rod Bearings • (6) ##HCTRE27352## Main Bearings • (1) ##HCTAT21139## Thrust Bearing • (1) ##HCTRE501580## Overhaul Gasket Set • (1) ##HCTAR67942## Front Crank Seal • (6) ##HCTT23471## Piston Pin Bushings • (1) Rear Crank Seal • (12) ##HCTR74194## Connecting Rod Bolts • (1) ##HCTMX506## Grommet Kit

Manufacturer: Hy-Capacity

SKU: HCTOK6310

Availability:

In stock

$1,283.97

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Notes	1.19" Piston Pin Diameter, O-Rings on Liner, 1.19" Piston Pin Diameter, O-Rings on Liner
Piston Marked	AR78310, R51451, RE53265, T30015, AR78310, R51451, RE53265, T30015
Piston Pin Dia.	1.190"
Engine CID	329
Fuel Type	Diesel
Cylinder Count	6
Bore	4.016"
Stroke Length	4.330"
Rod Journal Dimensions	2.7490" - 2.7500"
Main Journal Dimensions	3.1236" - 3.1244", 3.1236-3.1244"
New/Reman	New
Sold As	Each
Warranty	1 Year
Engine Manufacturer	John Deere
Connecting Rod Marked	R81410
