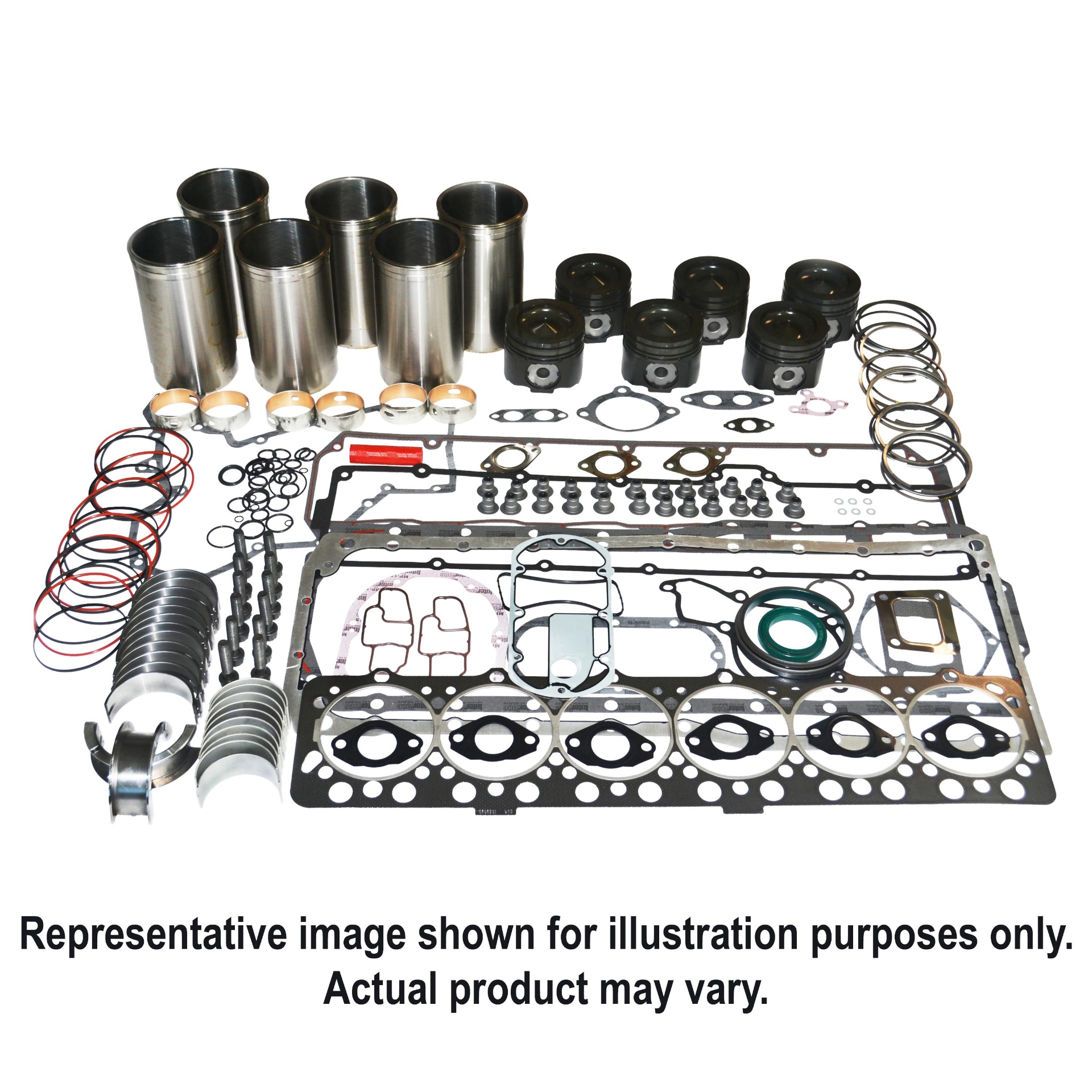

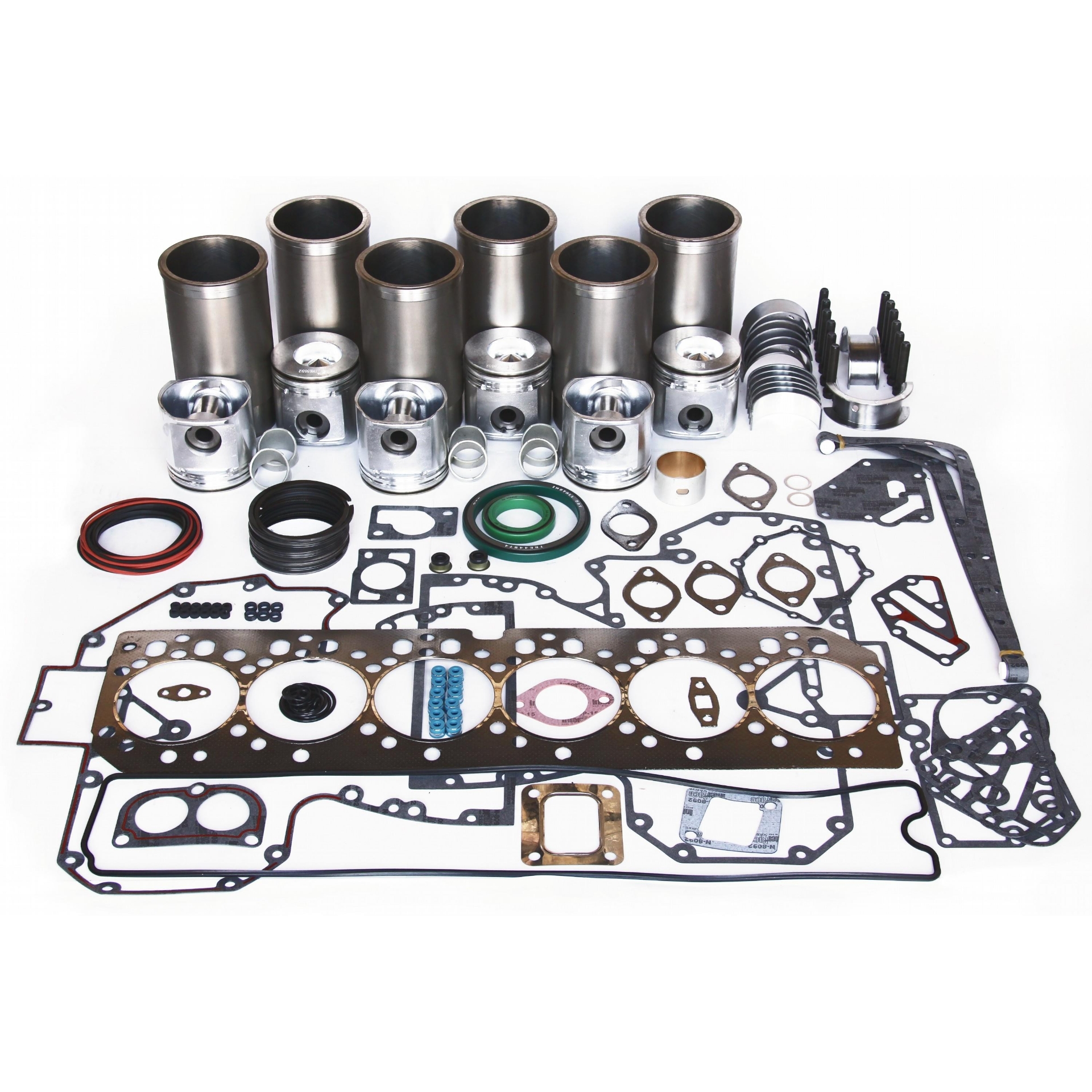

Major Overhaul Kit, John Deere 6068T/H PowerTech Diesel Engine

Be the first to review this product

For tier II engine w/ 4 valves per cylinder. Piston marked RE521616. Verify piston number before ordering. Includes: • (6) ##HCTRE524450## Cylinder Kits • (6) ##HCTRE65908## Rod Bearings • (6) ##HCTRE65165## Main Bearings • (1) ##HCTRE65168## Thrust Bearing • (1) ##HCTRE527833## Overhaul Gasket Set • (1) ##HCTRE505515## Front Crank Seal • (6) ##HCTR114082## Piston Pin Bushings • (1) Rear Crank Seal • (1) ##HCTR119874## Cam Bushings • (12) ##HCTR501124## Connecting Rod Bolts • (24) ##HCTRE526519## Valve Stem Seals

Manufacturer: Hy-Capacity

SKU: HCTRE527834

Availability:

In stock

$2,663.04

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Engine Notes	Turbocharged
Piston Marked	RE521616
Piston Pin Dia.	1.625"
Engine CID	414
Fuel Type	Diesel
Cylinder Count	6
Bore	4.193"
Stroke Length	5.000"
Rod Journal Dimensions	3.0630" - 3.0640"
Main Journal Dimensions	3.1230" - 3.1240", 3.1230-3.1240"
New/Reman	New
Piston Code	4834
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Engine Notes	Turbocharged
Piston Marked	RE521616
Piston Pin Dia.	1.625"
Engine CID	414
Fuel Type	Diesel
Cylinder Count	6
Bore	4.193"
Stroke Length	5.000"
Rod Journal Dimensions	3.0630" - 3.0640"
Main Journal Dimensions	3.1230" - 3.1240", 3.1230-3.1240"
New/Reman	New
Piston Code	4834
Sold As	Each
Warranty	1 Year

Product tags

Use On Below Models (Click to expand)

John Deere

Combine: 1570 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HCQ81 9540iWTS 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HZ480 9560iWTS 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HZ480 9560STS 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HH058 9560STS 6068 PowerTech Diesel Engine 9570STS 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HH059, 6068HH060, 6068HH061, 6068HH062 S550 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HCQ05, 6068HH061, 6068HH062 T550 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HZ482, 6068HZ483, 6068HZ484 W540 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HZ480, 6068HZ483, 6068HZ484 W550 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HZ482, 6068HZ483, 6068HZ484

COMBINE: 1570 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HCQ81 9540iWTS 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HZ480 9560iWTS 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HZ480 9560STS 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HH058 9570STS 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HH059, 6068HH060, 6068HH061, 6068HH062 S550 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HCQ05, 6068HH061, 6068HH062 T550 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HZ482, 6068HZ483, 6068HZ484 W540 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HZ480, 6068HZ483, 6068HZ484 W550 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HZ482, 6068HZ483, 6068HZ484

Crawler/Dozer: 755D 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT480 764 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT077 850J 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT090 850J II 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBZ05, 6068HT090

CRAWLER/DOZER: 755D 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT480 764 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT077 850J 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT090 850J II 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBZ05, 6068HT090

Engine: PowerTech 6068T/H PowerTech Diesel Engine, Tier 2 & 3

Excavator: 210G 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT109 210GLC 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT109 240DLC 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HT061, 6068HT082 250GLC 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HT062, 6068HT082 270DLC 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HT062, 6068HT082 270DLC 6068 PowerTech Diesel Engine 290GLC 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HT062, 6068HT082

EXCAVATOR: 210G 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT109 210GLC 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HT109 240DLC 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HT061, 6068HT082 250GLC 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HT062, 6068HT082 270DLC 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HT062, 6068HT082 290GLC 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HT062, 6068HT082

Forestry Equipment: 2154G 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HT121, 6068HT130 2954D 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HT070, 6068HT082

FORESTRY EQUIPMENT: 2154G 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HT121, 6068HT130 2954D 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HT070, 6068HT082

Forwarder: 1210E 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HTJ01 1510E 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HTJ01

FORWARDER: 1210E 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HTJ01 1510E 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HTJ01

Motor Grader: 670G 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW75, 6068HDW91, 6068DW201, 6068DW301 670GP 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW75, 6068HDW91, 6068DW201, 6068DW301 672G 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW75, 6068HDW91, 6068DW201, 6068DW301 672GP 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW75, 6068HDW91, 6068DW201, 6068DW301

MOTOR GRADER: 670G 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW75, 6068HDW91, 6068DW201, 6068DW301 670GP 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW75, 6068HDW91, 6068DW201, 6068DW301 672G 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW75, 6068HDW91, 6068DW201, 6068DW301 672GP 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW75, 6068HDW91, 6068DW201, 6068DW301

Skidder: 460DC 6068T PowerTech Diesel Engine, Piston marked RE521616 460DC 6068T PowerTech Diesel Engine 460DG 6068 PowerTech Diesel Engine, Eng. S/N 604613-> 460DG 6068 PowerTech Diesel Engine, Eng. S/N 604613->, Piston marked RE521616 640G III 6068T PowerTech Diesel Engine 640G III 6068T PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HDW64 640H 6068T PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HDW64, 6068HDW65, 6068HDW77 648G III 6068T PowerTech Diesel Engine 648G III 6068T PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HDW64 648H 6068T PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HDW64, 6068HDW65, 6068HDW77 648HTJ 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW64, 6068HDW77 648L 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HDW90 748H 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW66, 6068HDW71 748HTJ 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HDW71 848H 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW66, 6068HDW71, 6068HDW77 848HTJ 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW66, 6068HDW77

SKIDDER: 640G III 6068T PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HDW64 640H 6068T PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HDW64, 6068HDW65, 6068HDW77 648G III 6068T PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HDW64 648H 6068T PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HDW64, 6068HDW65, 6068HDW77 648HTJ 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW64, 6068HDW77 648L 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HDW90 748H 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW66, 6068HDW71 748HTJ 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HDW71 848H 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW66, 6068HDW71, 6068HDW77 848HTJ 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW66, 6068HDW77

Sprayer: 4730 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HN057, 6068HNW02 4830 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HN053 5430I 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HWZ80

SPRAYER: 4730 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HN057, 6068HNW02 4830 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HN053 5430I 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HWZ80

Tractor: 7195J 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBM01 7210J 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBM01 7225J 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBM01 7430 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HL483 7530 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HL483, 6068HL484 7630 6068 PowerTech Diesel Engine 7630 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HRW64, 6068HRW78 7730 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HRW64, 6068HRW78 7730 6068 PowerTech Diesel Engine 7830 6068 PowerTech Diesel Engine 7830 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HRW65, 6068HRW78, 6068RW203, 6068RW301 7930 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HRW65, 6068HRW78, 6068RW203, 6068RW301 7930 6068 PowerTech Diesel Engine

TRACTOR: 7195J 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBM01 7210J 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBM01 7225J 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBM01 7430 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HL483 7530 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HL483, 6068HL484 7630 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HRW64, 6068HRW78 7730 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HRW64, 6068HRW78 7830 6068 PowerTech Diesel Engines Tier 2 & 3 w/ Engine Code 6068HRW65, 6068HRW78, 6068RW203, 6068RW301

Wheel Loader: 524K II 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBZ06 544K II 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBZ06 624K 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HDW83 644J 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HDW69 644K 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW80, 6068HDW83

WHEEL LOADER: 524K II 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBZ06 544K II 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HBZ06 624K 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HDW83 644J 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HDW69 644K 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Codes 6068HDW80, 6068HDW83

Wheeled Harvester: 1170E 6068 Turbo PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HTJ89

WHEELED HARVESTER: 1170E 6068T PowerTech Tier 2 & 3 Diesel Engine, w/ Engine Code 6068HTJ89
