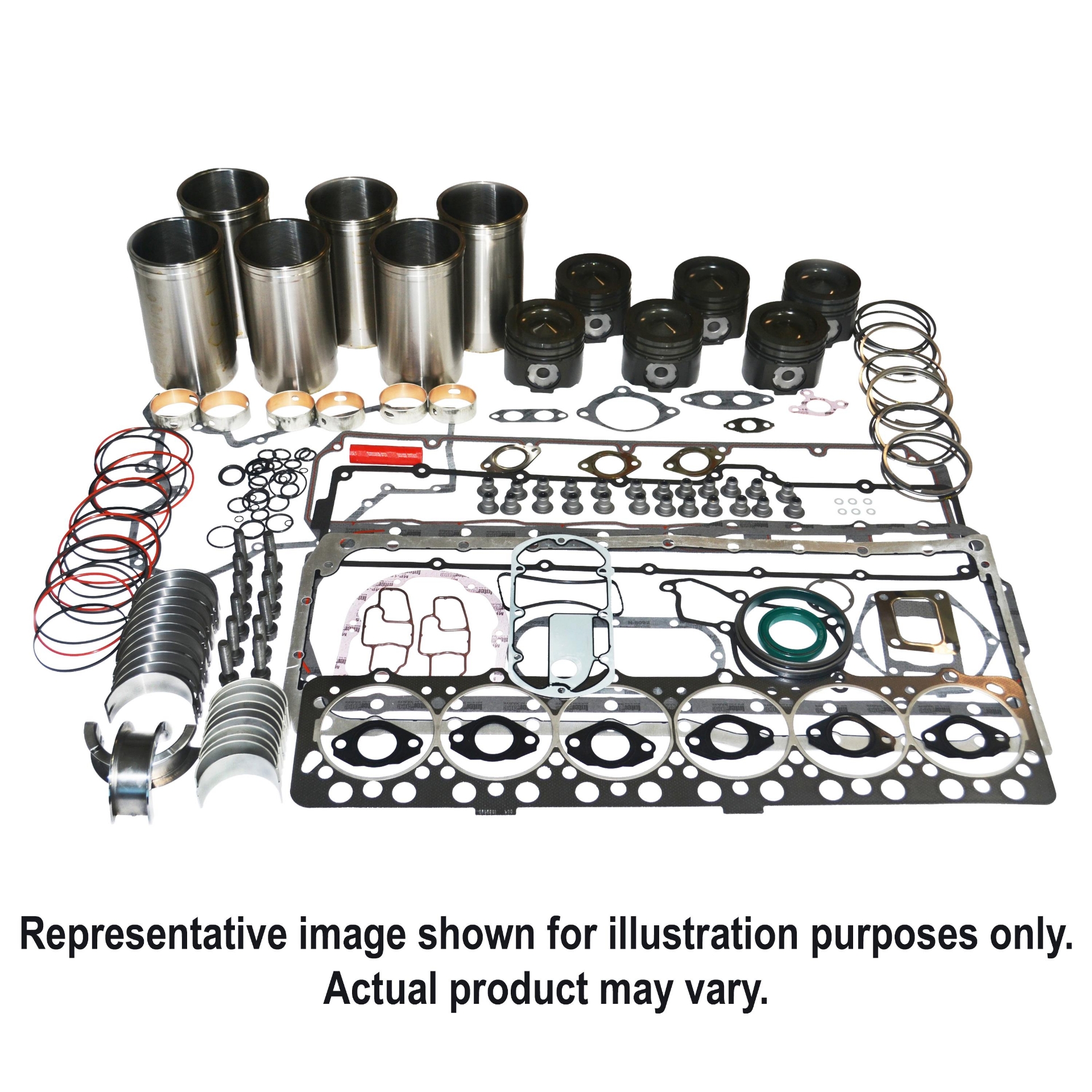

Major Overhaul Kit, John Deere 6404T, 6404A Diesel Engine

Includes: • (6) ##HCTAR63272## Cylinder Kits • (6) ##HCTAR45723## Rod Bearings • (6) ##HCTAR74814## Main Bearings • (1) ##HCTAR77748## Thrust Bearing • (1) ##HCTAR77747## Thrust Washer Set • (1) ##HCTAR63269## Overhaul Gasket Set • (1) Front Crank Seal • (6) ##HCTR42173## Piston Pin Bushings • (1) Rear Crank Seal • (4) ##HCTR46903## Cam Bushings • (12) ##HCTR66452## Connecting Rod Bolts

Manufacturer: Hy-Capacity

SKU: HCTRG17892

Availability:

In stock

$2,307.78

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R49470, R49650, R59850, R72128, R87558, R49470, R49650, R59850, R72128, R87558
Connecting Rod Marked	R41423, R58882, R66922, R41423, R58882, R66922
Engine Notes	1.610" Piston Pin Diameter, Internal Plate Type Oil Cooler, Turbocharged & Aftercooled, 1.610" Piston Pin Diameter, Internal Plate Type Oil Cooler, Turbocharged & Aftercooled
Piston Pin Dia.	1.610"
Engine CID	404
Fuel Type	Diesel
Cylinder Count	6
Bore	4.250"
Stroke Length	4.750"
Rod Journal Dimensions	2.9980" - 2.9990"
Main Journal Dimensions	3.3715-3.3725"
New/Reman	New
Sold As	Each
Warranty	1 Year
