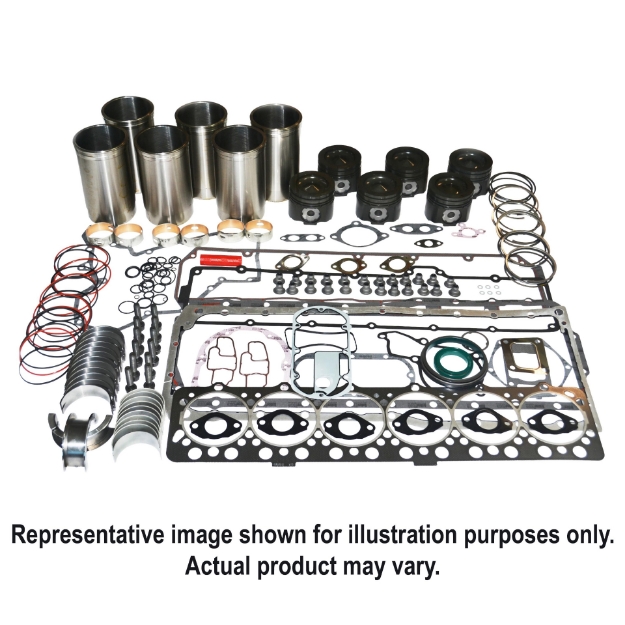

Major Overhaul Kit, John Deere 6531D Diesel Engine

Includes: • (6) ##HCTPLK549## Cylinder Kits • (6) ##HCTAR53020## Rod Bearings • (6) ##HCTAR101266## Main Bearings • (1) ##HCTAR101267## Thrust Bearing • (1) ##HCTAR89622## Thrust Washer Set • (1) ##HCTAR53614## Overhaul Gasket Set • (1) Front Crank Seal • (6) ##HCTR36328## Piston Pin Bushings • (1) ##HCTRE13310## Rear Crank Seal • (4) ##HCTR46903## Cam Bushings • (12) ##HCTR66453## Connecting Rod Bolts

Manufacturer: Hy-Capacity

SKU: HCTOK6549

Availability:

Out of stock

$5,193.51

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R40270, R42370, R45300, R47510, R40270, R42370, R45300, R47510
Connecting Rod Marked	R35048, R40238, R53286, R58881, R66927, R35048, R40238, R53286, R58881, R66927
Engine Notes	1.750" Piston Pin Diameter
Piston Pin Dia.	1.750"
Engine CID	531
Fuel Type	Diesel
Cylinder Count	6
Bore	4.750"
Stroke Length	5.000"
Rod Journal Dimensions	3.4980" - 3.4990"
Main Journal Dimensions	3.7480-3.7490"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R40270, R42370, R45300, R47510, R40270, R42370, R45300, R47510
Connecting Rod Marked	R35048, R40238, R53286, R58881, R66927, R35048, R40238, R53286, R58881, R66927
Engine Notes	1.750" Piston Pin Diameter
Piston Pin Dia.	1.750"
Engine CID	531
Fuel Type	Diesel
Cylinder Count	6
Bore	4.750"
Stroke Length	5.000"
Rod Journal Dimensions	3.4980" - 3.4990"
Main Journal Dimensions	3.7480-3.7490"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

John Deere

Engine: 500 Series Engine 6.531D

LOADER BACKHOE: 700 6531 Diesel 700A 6531 Diesel

SCRAPER: 760 6531 Diesel 760A 6531 Diesel

TRACTOR: 5020 6531 Diesel 6030 6531 Diesel
