Pair Of Snapping Rolls, Early s/n

600 / 600C Series Corn Headers (early version before s/n -745,100)
Includes model 606, 606C, 608, 608C, 612, 612C
Left Hand OEM part HXE11079 (sub for H232993)
Right Hand OEM part HXE11080 (sub for H232994). Pack of 1

Manufacturer: CFC

SKU: 12362152

$755.49

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value

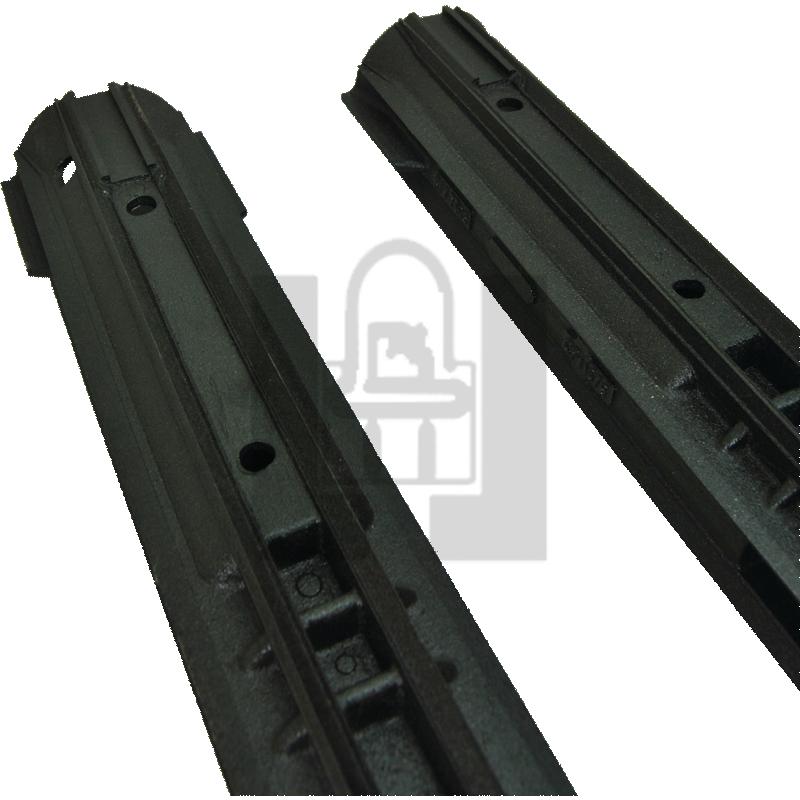

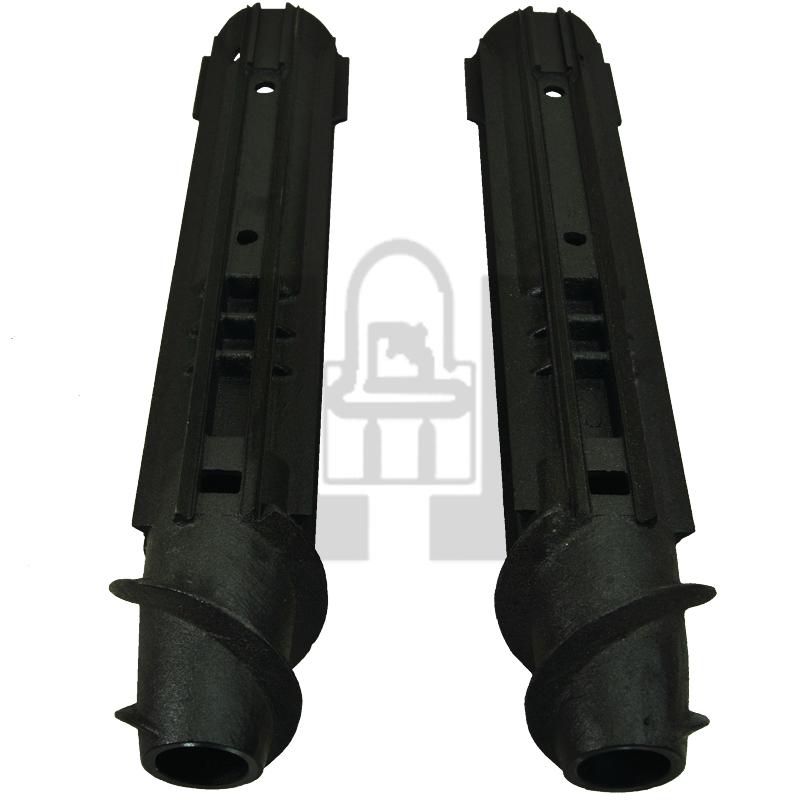

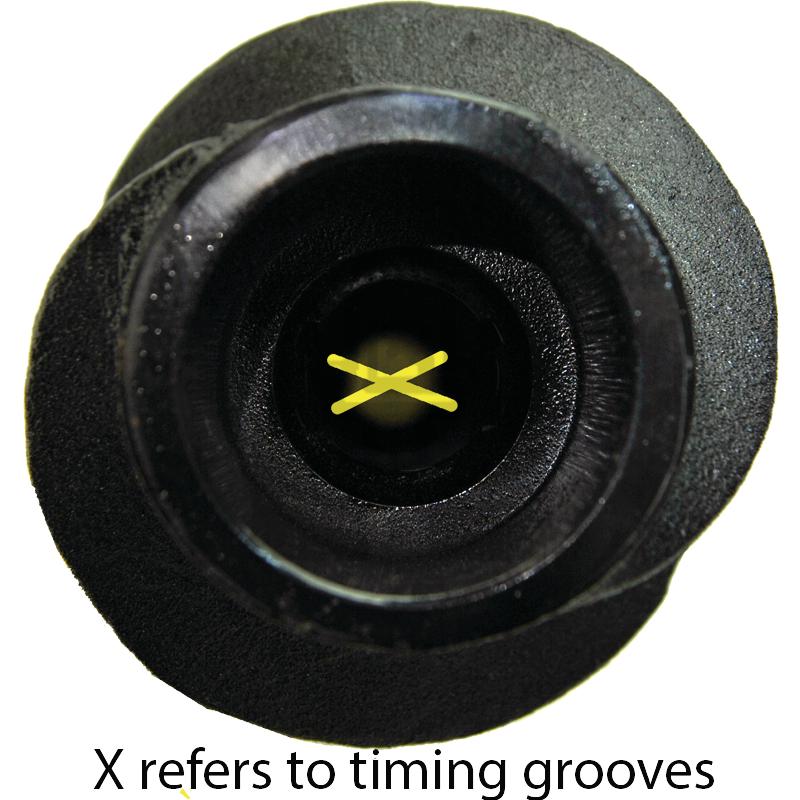

Description	This kit includes one pair (LH and RH) of stalk rolls replaces OEM 8-flute opposed (knife edges are timed to meet up allowing aggressive crimping / cutting stalks). Also included in the kit are 2x M20 flanged locking nuts (with pre-applied thread locker) included as these must be replaced when removing / installing stalk rolls.Early s/n 600C headers used stalk roll drive shafts which have timing marks which are asymmetrical in the shape of an "X" on the internal timing grooves whereas the later s/n 600C (**Some early 600C heads have been converted to the later style shafts and require the K154-2 rollers) use a symmetrical "+" shaped internal timing grooves.
CFC no.	K154-2E
Weight (lbs)	50 lbs

Products specifications

Attribute name	Attribute value
Description	This kit includes one pair (LH and RH) of stalk rolls replaces OEM 8-flute opposed (knife edges are timed to meet up allowing aggressive crimping / cutting stalks). Also included in the kit are 2x M20 flanged locking nuts (with pre-applied thread locker) included as these must be replaced when removing / installing stalk rolls.Early s/n 600C headers used stalk roll drive shafts which have timing marks which are asymmetrical in the shape of an "X" on the internal timing grooves whereas the later s/n 600C (**Some early 600C heads have been converted to the later style shafts and require the K154-2 rollers) use a symmetrical "+" shaped internal timing grooves.
CFC no.	K154-2E
Weight (lbs)	50 lbs
