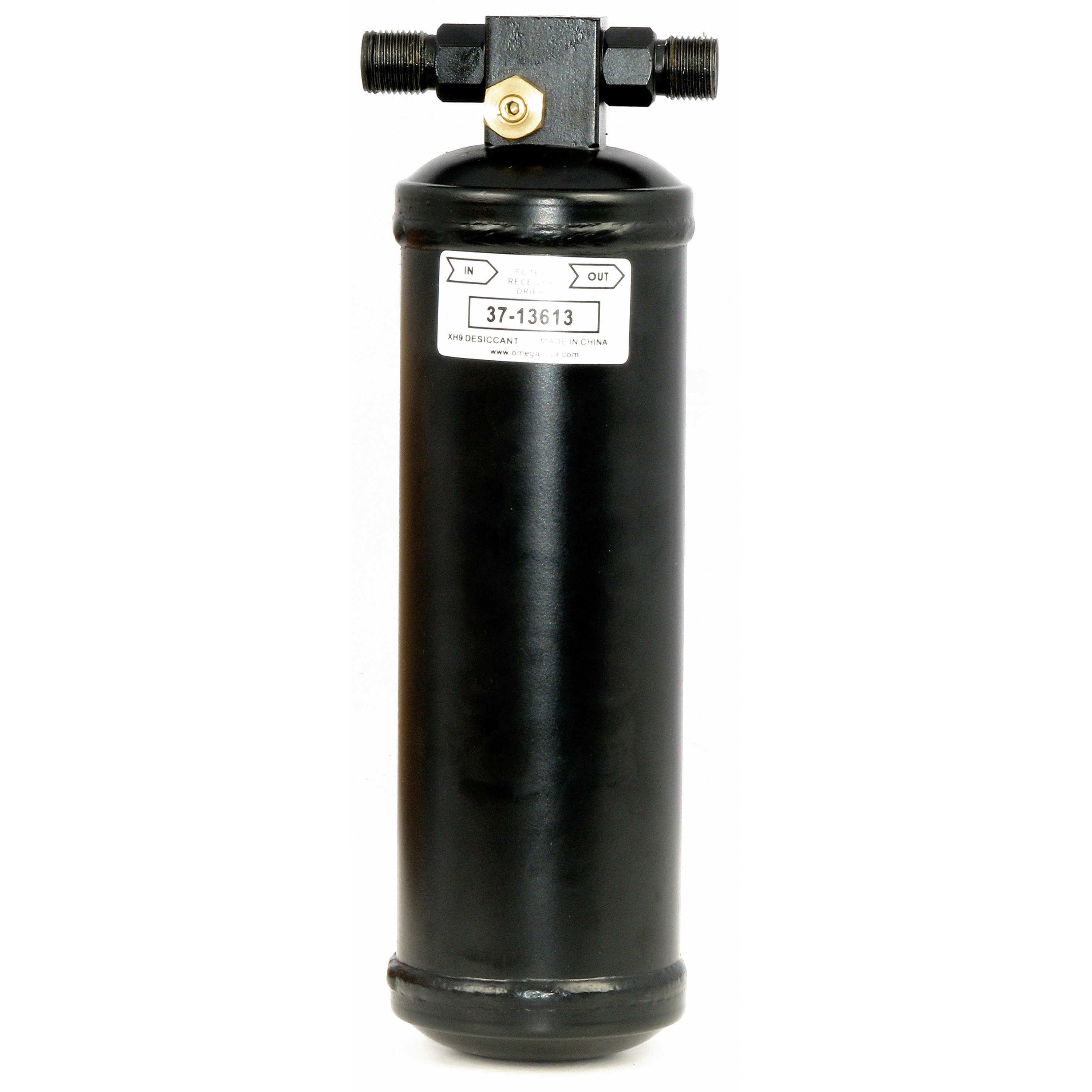

Receiver Drier, w/ High Pressure Relief Valve & Female Switch Port

Be the first to review this product

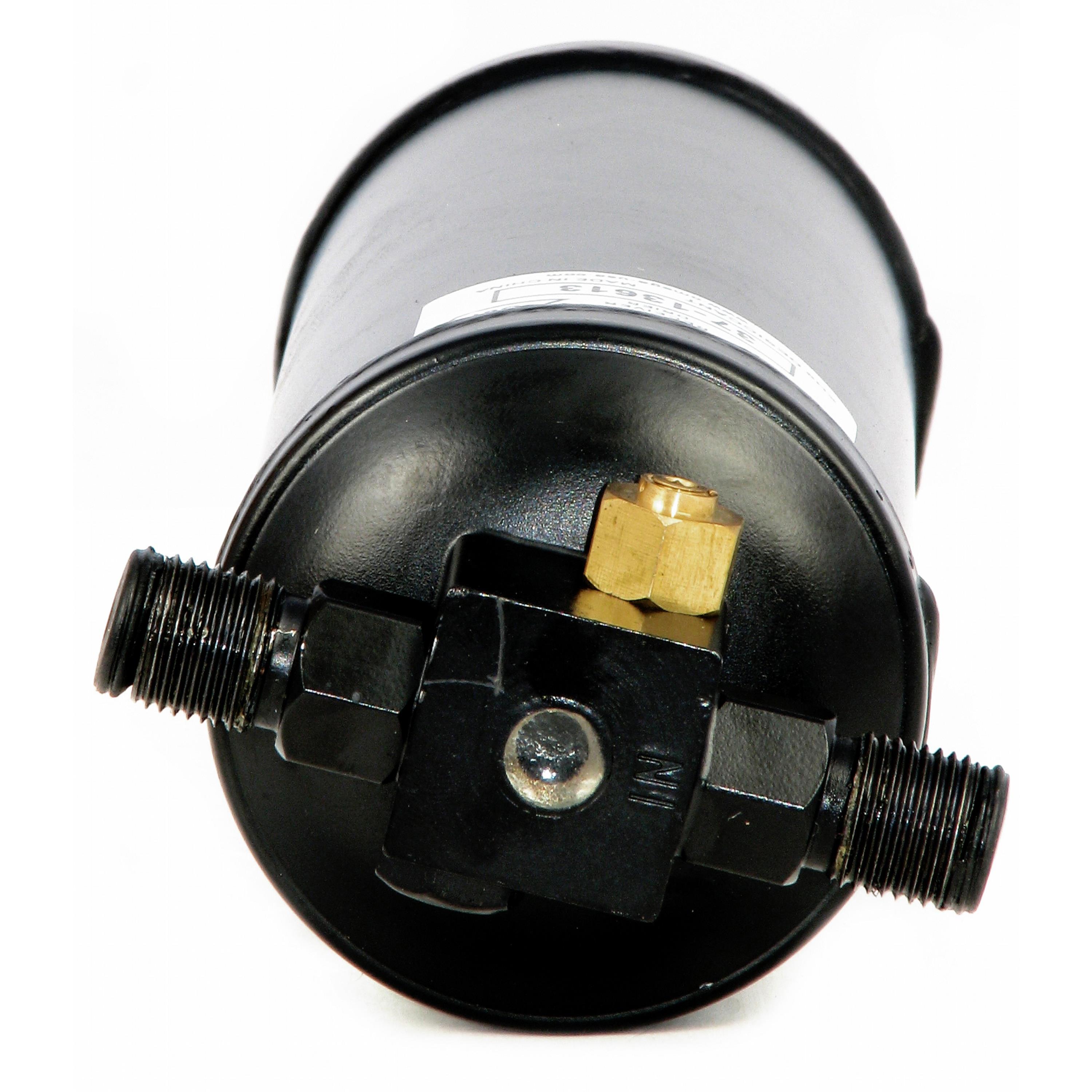

Inlet is on the left hand side with the high pressure relief valve towards you.

Manufacturer: Hy-Capacity

SKU: 8890103

Vendor: Granit

Availability:

In stock

$30.42

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Drier Type	Male O-Ring
Inlet Fitting	#6 (3/8" Male O-Ring)
Length	10"
New/Reman	New
OD	2-3/4"
Outlet Fitting	#6 (3/8" Male O-Ring)
Pressure Relief	HPRV
Quality	Aftermarket
Sight Glass	Top
Sold As	Each
Switch/Service Port	Female (1/4")
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Drier Type	Male O-Ring
Inlet Fitting	#6 (3/8" Male O-Ring)
Length	10"
New/Reman	New
OD	2-3/4"
Outlet Fitting	#6 (3/8" Male O-Ring)
Pressure Relief	HPRV
Quality	Aftermarket
Sight Glass	Top
Sold As	Each
Switch/Service Port	Female (1/4")
Warranty	1 Year

Product tags

124050A1 (2)
,
24100P4816S036 (1)
,
T39837 (1)
,
T39869 (1)
,
JA1110 (1)
,
3039149M1 (1)
,
A61688 (1)
,
A76085 (1)
,
A76312 (1)
,
24100P4816S036 (1)
,
3039149M1 (1)
,
A61688 (1)
,
A76085 (1)
,
A76312 (1)
,
JA1110 (1)
,
T39837 (1)
,
T39869 (1)
,
1706-7006 (1)
,
920003 (1)
,
A-804-349 (1)
,
AMX10163 (1)
,
802-200 (1)
,
WN-804-349 (1)

Use On Below Models (Click to expand)

Case

Backhoe: 580 Super D 580 Super E 580D 580E 580G 580K 680K 780B 780C

Tractor: 1070 1090 1170 1175 1270 1370 1470 1570 1896 2090 2094 2096 2290 2294 2390 2394 2470 2590 2594 2670 2870 3294 3394 3594 4490 4494 4690 4694 4890 4894 4994 770 870 970

Caterpillar

Motor Grader: 140G w/ 2-3/4" Diameter Drier

Claas

Forage Harvester: 860 Jaguar

David Brown

Tractor: 1294 1394 1490 1494 1594 1690
