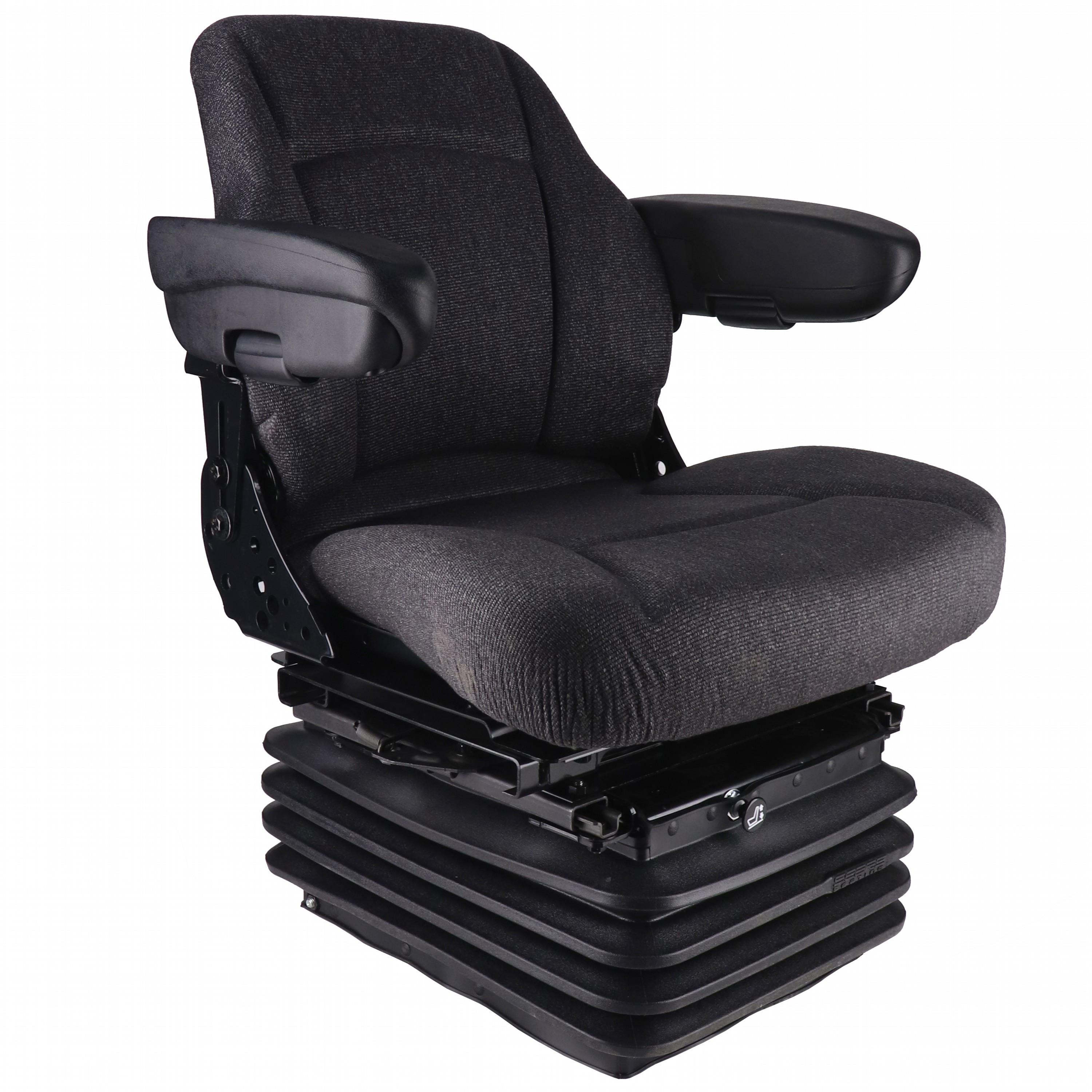

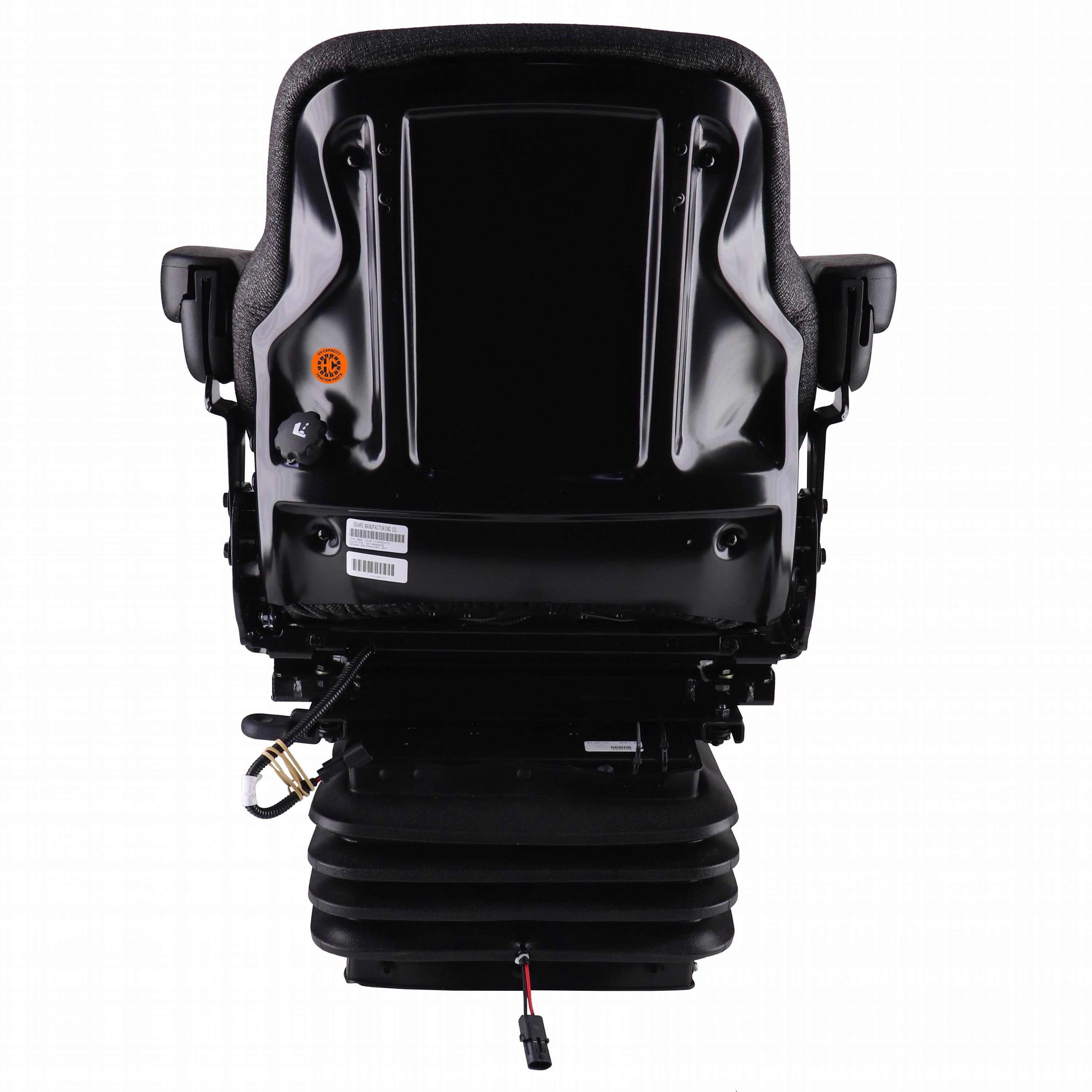

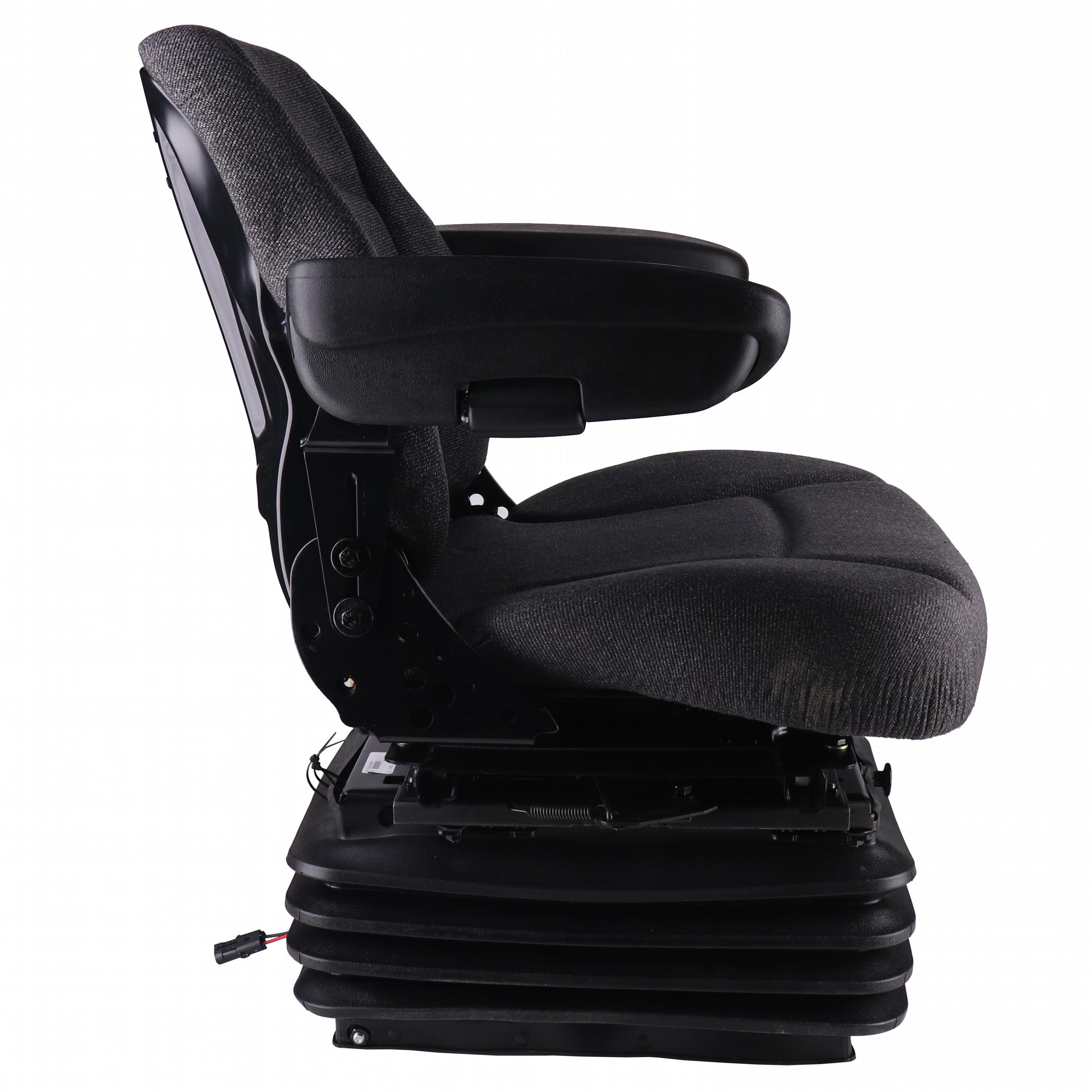

Sears Mid Back Seat, Gray Fabric w/ Air Suspension, Fore/Aft & Lateral Isolators

Be the first to review this product

This Genuine Sears Seat is made of durable gray fabric & has a rugged steel construction for years of service life. Allows front to rear movement, adjustable arm rests, lumbar support & a reclining back cushion for customized comfort. The heavy duty air suspension has a self-contained 12-volt compressor, plus fore/aft and lateral isolators to provide a smoother, more comfortable ride. Some minor drilling may be required.

Manufacturer: Hy-Capacity

SKU: S1999936

Availability:

In stock

$2,506.11

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

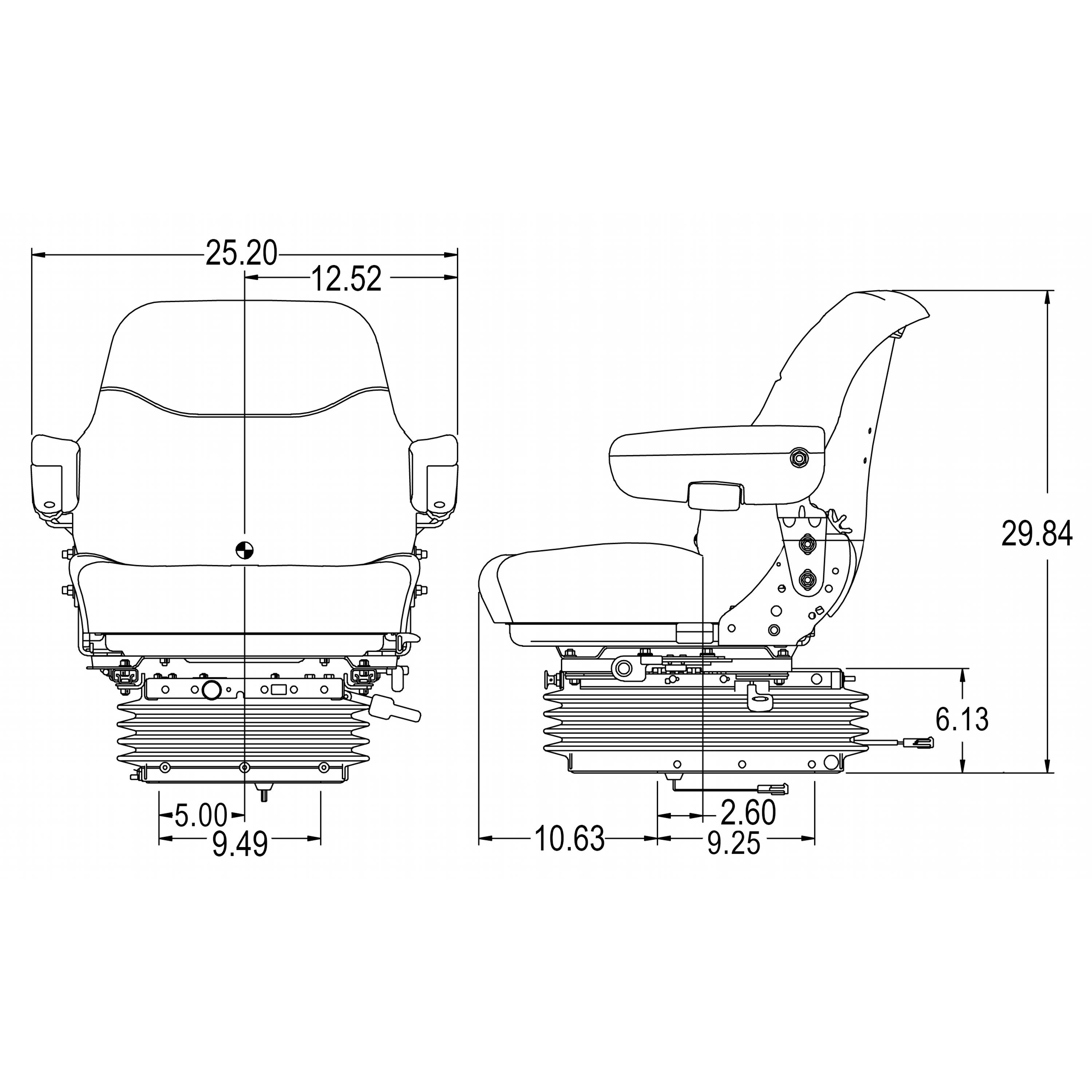

Specifications

Products specifications

Attribute name	Attribute value
Suspension	Air
Color	Gray
Arm Rest	Yes
Capacity	350 lbs.
Depth	25-1/4"
Height	29-3/4"
Material	Fabric
New/Reman	New
Operator Presence Switch	Yes
Seat Belt	No
Seat Foam	4"
Slide Rails	Yes
Sold As	Each
Volts	12V
Warranty	1 Year
Width	25-1/4"

Products specifications

Attribute name	Attribute value
Suspension	Air
Color	Gray
Arm Rest	Yes
Capacity	350 lbs.
Depth	25-1/4"
Height	29-3/4"
Material	Fabric
New/Reman	New
Operator Presence Switch	Yes
Seat Belt	No
Seat Foam	4"
Slide Rails	Yes
Sold As	Each
Volts	12V
Warranty	1 Year
Width	25-1/4"

Product tags

SA24644 (1)
,
1999936C3 (1)
,
1999936C4 (1)
,
SA40283.901 (1)
,
7612 (1)
,
KM 1000 (1)

Use On Below Models (Click to expand)

Case

Wheel Loader: 621B 721 721B 821 821B 921 921B W11 W11B W14B W14C W14FL W18 W18B W20 W20B W20C W24C W26B W36

Case IH

Floater: FLX3010 01/05 & Up FLX3510 01/05 & Up FLX4010 S/N JJA0108800 & Up FLX4510 S/N JJA0108800 & Up

Sprayer: 3020 Titan 3520 Titan 4020 Titan 4420 Patriot 4520 Titan SPX3320 Patriot SPX4410 01/05 & Up

Tractor: 120 Maxxum 130 Puma 160 Puma 165 Puma 170 Puma 180 Puma 185 Puma 195 Puma 200 Puma 225 Puma 230 Puma 335 Magnum 450 Quadtrac 500 Quadtrac 550 Quadtrac 600 Quadtrac 7110 w/ Original Air Suspension, if your machine is equipped with Hydraulic Suspension, Pedestal Kit S8301107 is also required. 7120 w/ Original Air Suspension, if your machine is equipped with Hydraulic Suspension, Pedestal Kit S8301107 is also required. 7130 w/ Original Air Suspension, if your machine is equipped with Hydraulic Suspension, Pedestal Kit S8301107 is also required. 7140 w/ Original Air Suspension, if your machine is equipped with Hydraulic Suspension, Pedestal Kit S8301107 is also required. 7150 w/ Original Air Suspension, if your machine is equipped with Hydraulic Suspension, Pedestal Kit S8301107 is also required. 7210 Models w/ Original Air Suspensions 7220 Models w/ Original Air Suspensions 7230 Models w/ Original Air Suspensions 7240 Models w/ Original Air Suspensions 7250 Models w/ Original Air Suspensions 8910 Models w/ Original Air Suspensions 8920 Models w/ Original Air Suspensions 8930 Models w/ Original Air Suspensions 8940 Models w/ Original Air Suspensions 8950 Models w/ Original Air Suspensions 9210 Models w/ Original Air Suspensions 9230 Models w/ Original Air Suspensions 9240 Models w/ Original Air Suspensions 9250 Models w/ Original Air Suspensions 9260 Models w/ Original Air Suspensions 9270 Models w/ Original Air Suspensions 9280 Models w/ Original Air Suspensions 9310 Models w/ Original Air Suspensions 9330 Models w/ Original Air Suspensions 9370 Models w/ Original Air Suspensions 9380 Models w/ Original Air Suspensions 9390 Models w/ Original Air Suspensions MX100C MX120 MX135 MX150 MXM120 MXM130 MXM140 MXM155 MXM175 MXM190

Deutz

Tractor: 9130 9150 9170 9190

Hagie

Sprayer: 204 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 204SP Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 2100 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 250 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 254 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 280 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 284 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 284TXP Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 284XP Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 8240 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 8250 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 8370 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 8380 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch 8400 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch DTS10 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch DTS8 Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch DTS8T Some Mounting Modifications May Be Required, Seat Does Not Have Safety Switch

Massey Ferguson

Tractor: 4335 4345 4355 4360 4370 5425 5435 5445 5455 5460 5465 5470 5480 6140 6150 6170 6180 6190 6235 6245 6255 6260 6265 6270 6280 6290 6455 6475 6480 6485 6490 6495 6497 6499 7465 7475 7480 7490 7495 7497 7499 8120 8140 8150 8160 8210 8220 8240 8245 8250 8260 8270 8280 9240

McCormick

Tractor: CX105 CX110 CX85 CX90 CX95 MC100 MC105 MC115 MC120 MC125 MC130 MC135 MC80 MC90 MC95 MTX110 MTX120 MTX125 MTX135 MTX140 MTX145 MTX150 MTX155 MTX165 MTX170 MTX175 MTX185 MTX200 TTX190 TTX210 TTX230 XTX145 XTX165 XTX185 XTX200 XTX215 ZTX230 ZTX260 ZTX280

New Holland

Tractor: 8160 8260 8360 8670 8670A 8770 8770A 8870 8870A 8970 8970A 9184 9280 9282 9384 9480 9482 9484 9680 9682 9684 9880 9882 9884 T7.210 T7.235 T7.250 T7.260 T7.270 T8.275 T8.300 T8.330 T8.360 T8.390 T8010 T8020 T8030 T8050 T9.390 T9.450 T9.505 T9.560 T9.615 T9020 T9030 T9040 T9050 T9060 TG210 TG215 TG230 TG245 TG255 TG275 TG285 TG305 TJ325 TJ330 TJ375 TJ380 TJ425 TJ450 TJ480 TM115 TM120 TM125 TM130 TM135 TM140 TM150 TM155 TM165 TM175 TM190

Steiger

Tractor: 350 400

Versatile

Tractor: 2145 2160 2180 2210 2290 2360 2375 2425 305 375 400 435 485 535
