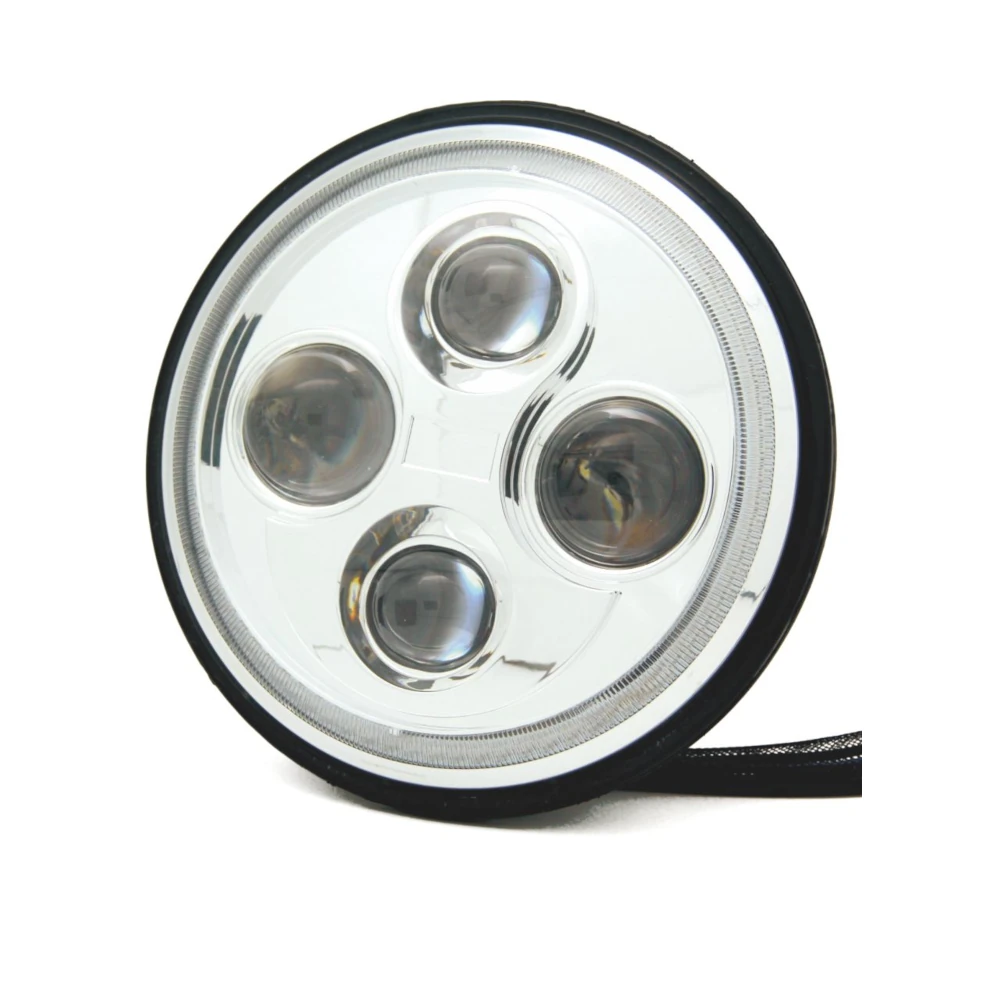

E-HDL-7RD-RL 7” round Hi-Lo headlight

Be the first to review this product

Manufacturer: Larsen Lights

SKU: LL0584

Availability:

58 in stock

$119.00

Qty:

+ -

Product Files

Specification

Headlight Specifications

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

E-HDL-7RD-RL 7” round Hi-Lo headlight

H4 connector included - we include a drawing of how to install the spades into the housing as some models are set up differently than others.

Functions: Low Beam, High Beam
Approvals: DOT FMVSS 108/ SAE J1383
LED Type: OE Vehicle Level LEDs
Raw Lumen Low beam: 2800, High beam: 4500
Effective Lumen Low beam: 909, High beam: 1110
Color Temp: 5700K
Energy Consumption: Low Beam 29W; High Beam 26W
Current Draw@12V: Low Beam 2.42A; High Beam 2.17A
EMC Grade: ECE R10
Operating Voltage: 10-30V
Connector: H4
Size: 176 x 101mm - 7" OD
Housing Material: Aluminium Alloy
Lens Material: PC
IP Rate: IP66, IP6K9K
Work Temp: -40~+50°C
Life Time: >30000h
Warranty: 3 years

E-HDL-7RD-RL 7” round Hi-Lo headlight

H4 connector included - we include a drawing of how to install the spades into the housing as some models are set up differently than others.

Functions: Low Beam, High Beam
Approvals: DOT FMVSS 108/ SAE J1383
LED Type: OE Vehicle Level LEDs
Raw Lumen Low beam: 2800, High beam: 4500
Effective Lumen Low beam: 909, High beam: 1110
Color Temp: 5700K
Energy Consumption: Low Beam 29W; High Beam 26W
Current Draw@12V: Low Beam 2.42A; High Beam 2.17A
EMC Grade: ECE R10
Operating Voltage: 10-30V
Connector: H4
Size: 176 x 101mm - 7" OD
Housing Material: Aluminium Alloy
Lens Material: PC
IP Rate: IP66, IP6K9K
Work Temp: -40~+50°C
Life Time: >30000h
Warranty: 3 years
