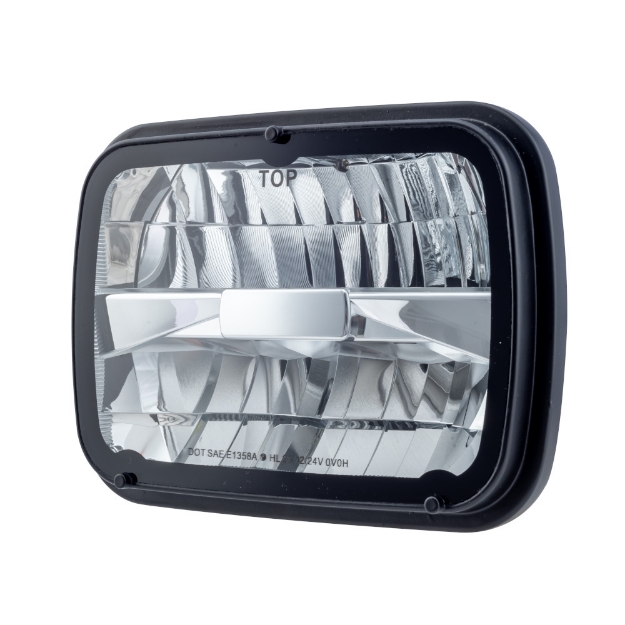

E1358A 5x7 Hi-Lo headlight

Be the first to review this product

E1358A 5x7 Hi-Lo headlight, DRL ready for IH trucks and others that use freq. style dimming (PWM) for daytime running lights.

Manufacturer: Larsen Lights

SKU: LL0579

Availability:

55 in stock

$110.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

E1358A 5x7 Hi-Lo headlight

H4 connector included - we include a drawing of how to install the spades into the housing as some models are set up differently than others.

DRL ready for IH trucks and others that use freq. style dimming (PWM) for daytime running lights.

Size:141*199*86mm
Functions：High beam，Low beam
Color Temp: 5700K
Voltage: 10~30V
Raw Power: High beam: 66w, Low beam: 30w
Effective Power: High beam: 28w, Low beam: 22w
Raw Lumen: High beam: 7400lm, Low beam: 2900lm
Effective Lumen: High beam ：1900lm;Low beam: 1100lm
EMC Grade: CISPR 25 Class 3
IP Rate IP66, IP6K9K
Connector：H4
Housing Material: Aluminium Alloy, Lens Material: PC
Working Temperature: -40 ~130°F

H6054

E1358A 5x7 Hi-Lo headlight

H4 connector included - we include a drawing of how to install the spades into the housing as some models are set up differently than others.

DRL ready for IH trucks and others that use freq. style dimming (PWM) for daytime running lights.

Size:141*199*86mm
Functions：High beam，Low beam
Color Temp: 5700K
Voltage: 10~30V
Raw Power: High beam: 66w, Low beam: 30w
Effective Power: High beam: 28w, Low beam: 22w
Raw Lumen: High beam: 7400lm, Low beam: 2900lm
Effective Lumen: High beam ：1900lm;Low beam: 1100lm
EMC Grade: CISPR 25 Class 3
IP Rate IP66, IP6K9K
Connector：H4
Housing Material: Aluminium Alloy, Lens Material: PC
Working Temperature: -40 ~130°F

H6054
