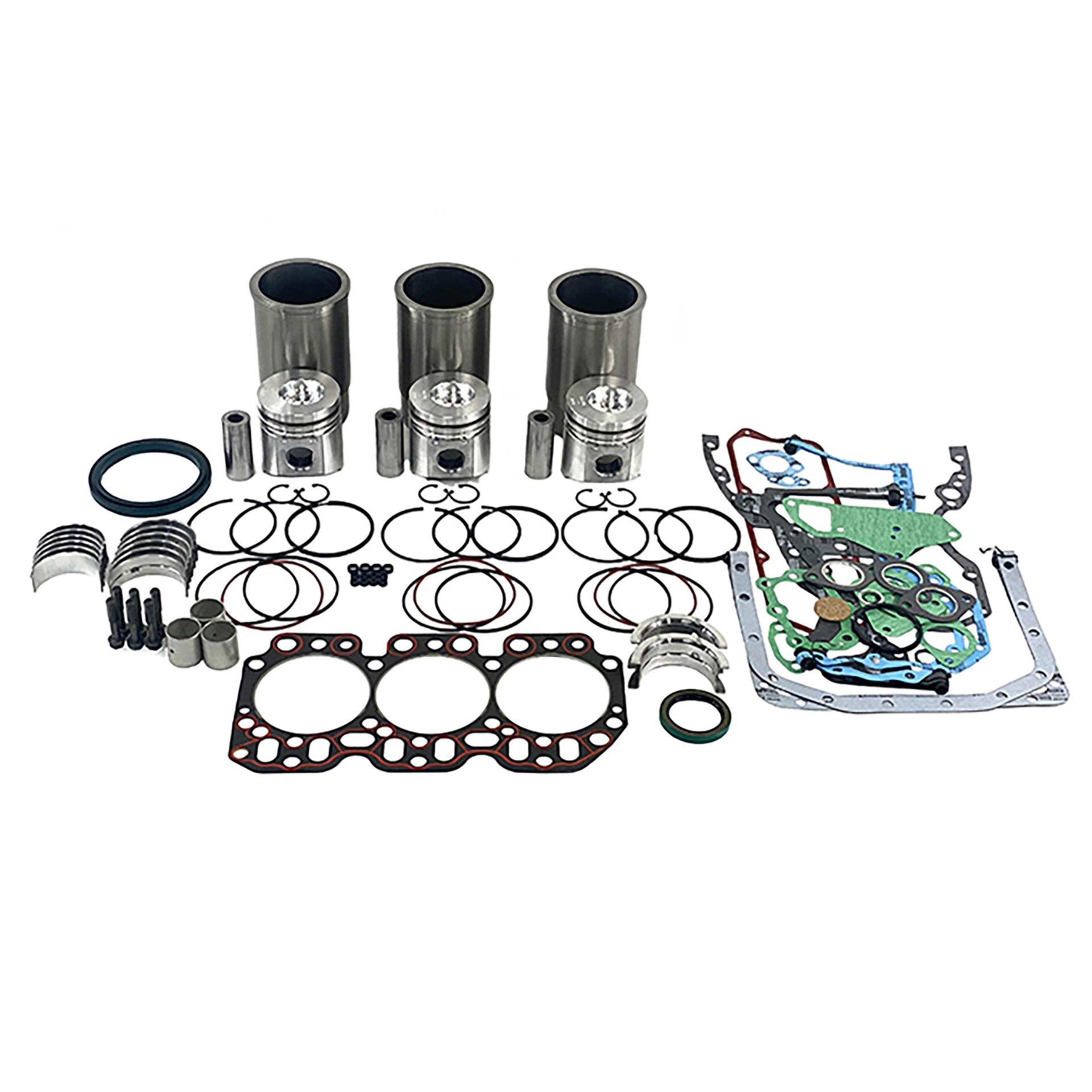

Major Overhaul Kit, John Deere 3-164D Diesel Engine, O-Rings in Block, w/ 1.37" Piston Pin Diameter

Be the first to review this product

Includes: • (3) ##HCTAR78041## Cylinder Kits • (3) ##HCTRE27348## Rod Bearings • (3) ##HCTRE27352## Main Bearings • (1) ##HCTAT21139## Thrust Bearing • (1) ##HCTRE501578## Overhaul Gasket Set • (1) ##HCTAR67942## Front Crank Seal • (3) ##HCTR55647## Piston Pin Bushings • (1) Rear Crank Seal • (6) ##HCTR74194## Connecting Rod Bolts • (1) ##HCTMX504## Grommet Kit

Manufacturer: Hy-Capacity

SKU: HCTOK3041

Availability:

In stock

$609.68

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R55100, R72965, R72967, R80408, R55100, R72965, R72967, R80408
Connecting Rod Marked	R51727
Engine Notes	1.375" Piston Pin Diameter, Naturally Aspirated, O-Rings in the Block, 1.375" Piston Pin Diameter, Naturally Aspirated, O-Rings in the Block
Piston Marked	AR77762
Piston Pin Dia.	1.375"
Engine CID	164
Fuel Type	Diesel
Cylinder Count	3
Bore	4.0157"
Stroke Length	4.328"
Rod Journal Dimensions	2.7480" - 2.7490"
Main Journal Dimensions	3.1235-3.1245"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Block Marked	R55100, R72965, R72967, R80408, R55100, R72965, R72967, R80408
Connecting Rod Marked	R51727
Engine Notes	1.375" Piston Pin Diameter, Naturally Aspirated, O-Rings in the Block, 1.375" Piston Pin Diameter, Naturally Aspirated, O-Rings in the Block
Piston Marked	AR77762
Piston Pin Dia.	1.375"
Engine CID	164
Fuel Type	Diesel
Cylinder Count	3
Bore	4.0157"
Stroke Length	4.328"
Rod Journal Dimensions	2.7480" - 2.7490"
Main Journal Dimensions	3.1235-3.1245"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

John Deere

CRAWLER/DOZER: 350B 3164 Diesel, S/N 179,602->, O-Rings in Block 350C 3164 Diesel, S/N 179,602->, O-Rings in Block

Engine: 300 Series Engine 3.164, To ESN 179,601, O-Rings on Block

LOADER BACKHOE: 302A 3164 Diesel, S/N 179,602->, O-Rings in Block 310 3164 Diesel, S/N 179,602->, O-Rings in Block

TRACTOR: 1030 3164 Diesel, S/N 179,602->, O-Rings in Block 1120 3164 Diesel, S/N 179,602->, O-Rings in Block 1130 3164 Diesel, S/N 179,602->, O-Rings in Block 1520 3164 Diesel, S/N 179,602->, O-Rings in Block 1530 3164 Diesel, S/N 179,602->, O-Rings in Block 2040 3164 Diesel, S/N 179,602->, O-Rings in Block 302 3164 Diesel, S/N 179,602->, O-Rings in Block 830 3164 Diesel, S/N 179,602->, O-Rings in Block 930 3164 Diesel, S/N 179,602->, O-Rings in Block
