Major Overhaul Kit, John Deere 3-164D Diesel Engine, O-Rings on Liner, w/ 1.19" Piston Pin Diameter

Be the first to review this product

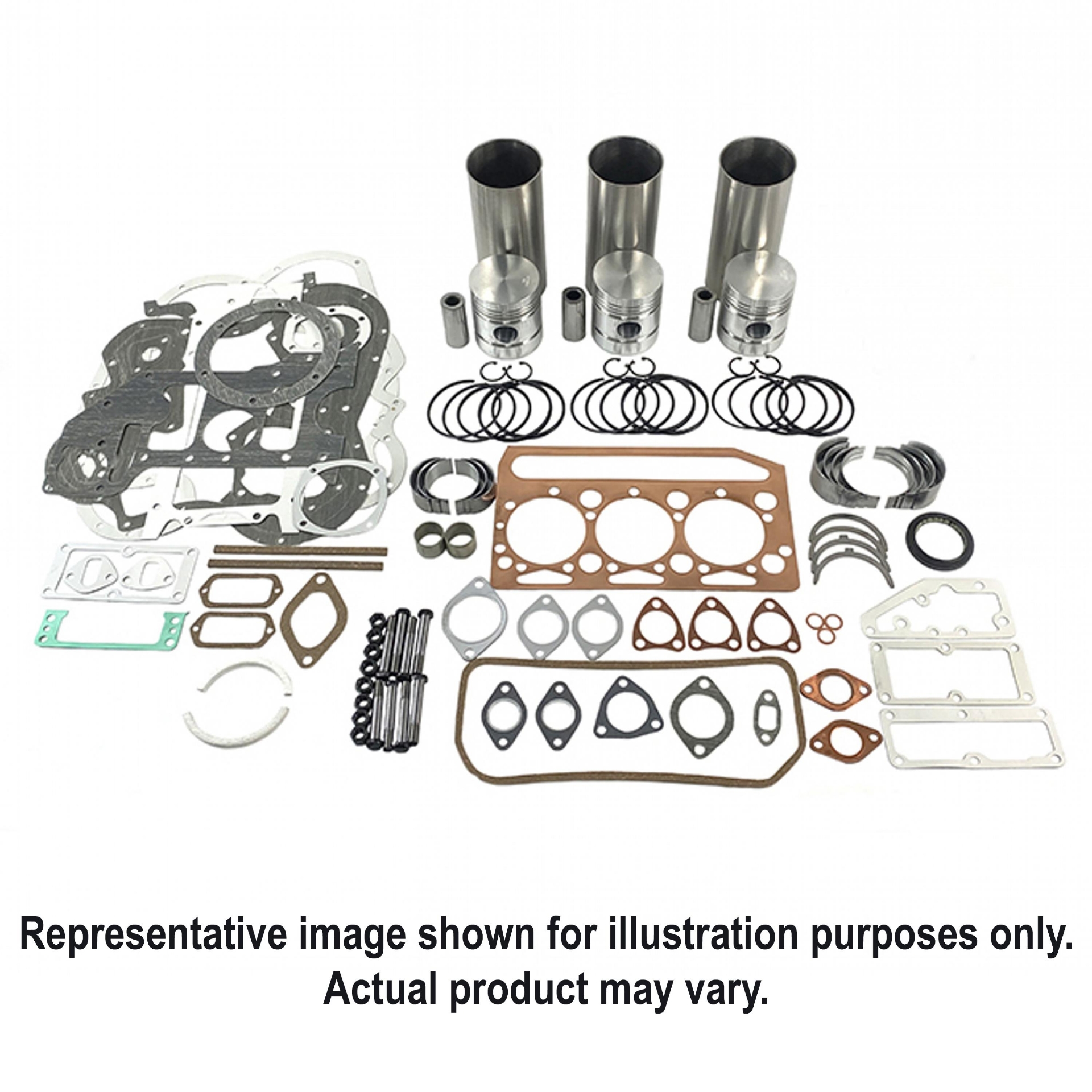

Includes: • (3) ##HCTPLK310## Cylinder Kits • (3) ##HCTRE27348## Rod Bearings • (3) ##HCTRE27352## Main Bearings • (1) ##HCTAT21139## Thrust Bearing • (1) ##HCTRE501578## Overhaul Gasket Set • (1) ##HCTAR67942## Front Crank Seal • (3) ##HCTT23471## Piston Pin Bushings • (1) Rear Crank Seal • (6) ##HCTR74194## Connecting Rod Bolts • (1) ##HCTMX504## Grommet Kit

Manufacturer: Hy-Capacity

SKU: HCTOK3310

Availability:

In stock

$702.57

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Connecting Rod Marked	R81410
Engine Notes	1.19" Piston Pin Diameter, Naturally Aspirated, O-Rings on Liner, 1.19" Piston Pin Diameter, Naturally Aspirated, O-Rings on Liner
Piston Marked	AR78310
Piston Pin Dia.	1.190"
Engine CID	164
Fuel Type	Diesel
Cylinder Count	3
Bore	4.0157"
Stroke Length	4.328"
Rod Journal Dimensions	2.7480" - 2.7490"
Main Journal Dimensions	3.1235" - 3.1245", 3.1235-3.1245"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	John Deere
Connecting Rod Marked	R81410
Engine Notes	1.19" Piston Pin Diameter, Naturally Aspirated, O-Rings on Liner, 1.19" Piston Pin Diameter, Naturally Aspirated, O-Rings on Liner
Piston Marked	AR78310
Piston Pin Dia.	1.190"
Engine CID	164
Fuel Type	Diesel
Cylinder Count	3
Bore	4.0157"
Stroke Length	4.328"
Rod Journal Dimensions	2.7480" - 2.7490"
Main Journal Dimensions	3.1235" - 3.1245", 3.1235-3.1245"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

John Deere

Crawler/Dozer: 350B 3-164 Diesel, S/N <-179,601, O-Rings on Liner

Engine: 300 Series Engine 3.164, To ESN 179,601, O-Rings on Liner 300 Series Engine 3.164, S/N <-179,601, O-Rings on Liner

Tractor: 1030 3-164 Diesel, S/N <-179,601, O-Rings on Liner 1120 3-164 Diesel, S/N <-179,601, O-Rings on Liner 1130 3-164 Diesel, S/N <-179,601, O-Rings on Liner 1520 3-164 Diesel, S/N <-179,601, O-Rings on Liner 1530 3-164 Diesel, S/N <-179,601, O-Rings on Liner 2040 3-164 Diesel, S/N <-179,601, O-Rings on Liner 830 3-164 Diesel, S/N <-179,601, O-Rings on Liner 930 3-164 Diesel, S/N <-179,601, O-Rings on Liner

TRACTOR: 1120 3164 Diesel, S/N <-179,601, O-Rings on Liner 1520 3164 Diesel, S/N <-179,601, O-Rings on Liner
